Specifications: Ford Fiesta IV (Mk4) 3 door 1.25i 16V (75 Hp) CVT 1997, 1998, 1999

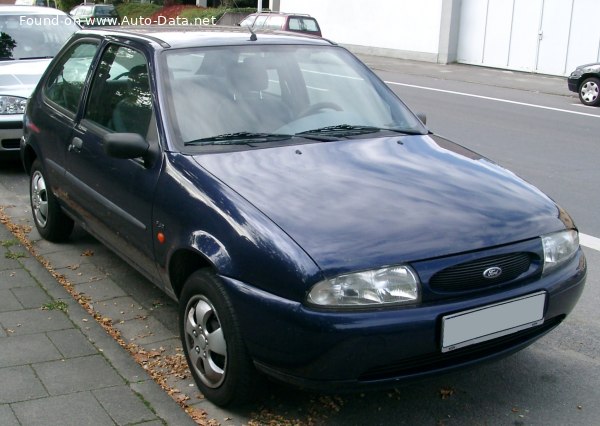

1996 Ford Fiesta IV (Mk4) 3 door - Photo 1

Ford Fiesta IV (Mk4) 3 door 1.25i 16V (75 Hp) CVT – Full specifications
General information
Brand Ford
Model Fiesta
Generation Fiesta IV (Mk4) 3 door
Modification (Engine) 1.25i 16V (75 Hp) CVT
Start of production 1997 year
End of production 1999 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – combined 7.1 l/100 km
33.1 US mpg
39.8 UK mpg
14.1 km/l
CO2 emissions 167 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 15.6 sec
Acceleration 0 – 62 mph 15.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 14.8 sec
Maximum speed 160 km/h
99.42 mph
Weight-to-power ratio 13.5 kg/Hp, 73.9 Hp/tonne
Weight-to-torque ratio 9.2 kg/Nm, 108.4 Nm/tonne
Engine specs
Power 75 Hp @ 5500 rpm.
Power per litre 60.4 Hp/l
Torque 110 Nm @ 4200 rpm.
81.13 lb.-ft. @ 4200 rpm.
Engine layout Front, Transverse
Engine Model/Code DHA, DHB, DHC, DHD, DHE, DHF, DHG
Engine displacement 1242 cm3
75.79 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 71.9 mm
2.83 in.
Piston Stroke 76.5 mm
3.01 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt

Space, Volume and weights
Kerb Weight 1015-1038 kg
2237.69 – 2288.4 lbs.
Max. weight 1415-1450 kg
3119.54 – 3196.7 lbs.
Max load 400-412 kg
881.85 – 908.3 lbs.
Trunk (boot) space – minimum 250 l
8.83 cu. ft.
Trunk (boot) space – maximum 930 l
32.84 cu. ft.
Fuel tank capacity 42 l
11.1 US gal | 9.24 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 600 kg
1322.77 lbs.
Permitted trailer load without brakes 310 kg
683.43 lbs.
Dimensions
Length 3828 mm
150.71 in.
Width 1634 mm
64.33 in.
Height 1334 mm
52.52 in.
Wheelbase 2446 mm
96.3 in.
Front track 1429 mm
56.26 in.
Rear (Back) track 1384 mm
54.49 in.
Minimum turning circle (turning diameter) 9.9 m
32.48 ft.
Drivetrain, brakes and suspension specs
Drive wheel Front wheel drive
Number of gears and type of gearbox 1 gears, automatic transmission CVT
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 165/70 R13; 185/55 R14
Wheel rims size 13; 14
