Specifications: Ford Fiesta V (Mk5) 5 door 1.25i 16V (75 Hp) 1999, 2000, 2001

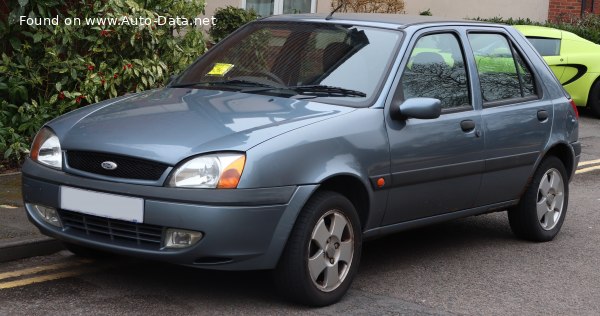

1999 Ford Fiesta V (Mk5) 5 door - Photo 1

Ford Fiesta V (Mk5) 5 door 1.25i 16V (75 Hp) – Full specifications
General information
Brand Ford
Model Fiesta
Generation Fiesta V (Mk5) 5 door
Modification (Engine) 1.25i 16V (75 Hp)
Start of production September, 1999 year
End of production November, 2001 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – combined 6.9 l/100 km
34.1 US mpg
40.9 UK mpg
14.5 km/l
CO2 emissions 161 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 12.7 sec
Acceleration 0 – 62 mph 12.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.1 sec
Maximum speed 170 km/h
105.63 mph
Weight-to-power ratio 14.1 kg/Hp, 71 Hp/tonne
Weight-to-torque ratio 9.6 kg/Nm, 104.1 Nm/tonne
Engine specs
Power 75 Hp @ 5200 rpm.
Power per litre 60.4 Hp/l
Torque 110 Nm @ 2500 rpm.
81.13 lb.-ft. @ 2500 rpm.
Engine layout Front, Transverse
Engine Model/Code DHA, DHB, DHC, DHD, DHE, DHF, DHG
Engine displacement 1242 cm3
75.79 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 71.9 mm
2.83 in.
Piston Stroke 76.5 mm
3.01 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt

Space, Volume and weights
Kerb Weight 1057 kg
2330.29 lbs.
Max. weight 1475 kg
3251.82 lbs.
Max load 418 kg
921.53 lbs.
Trunk (boot) space – minimum 250 l
8.83 cu. ft.
Trunk (boot) space – maximum 930 l
32.84 cu. ft.
Fuel tank capacity 40 l
10.57 US gal | 8.8 UK gal
Dimensions
Length 3833 mm
150.91 in.
Width 1634 mm
64.33 in.
Height 1334 mm
52.52 in.
Wheelbase 2446 mm
96.3 in.
Front track 1429 mm
56.26 in.
Rear (Back) track 1384 mm
54.49 in.
Minimum turning circle (turning diameter) 9.9 m
32.48 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 185/55R14
Wheel rims size 14
