Specifications: Ford Fiesta VI (Mk6) 5 door 1.25 Duratec (75 Hp) 2002, 2003, 2004, 2005

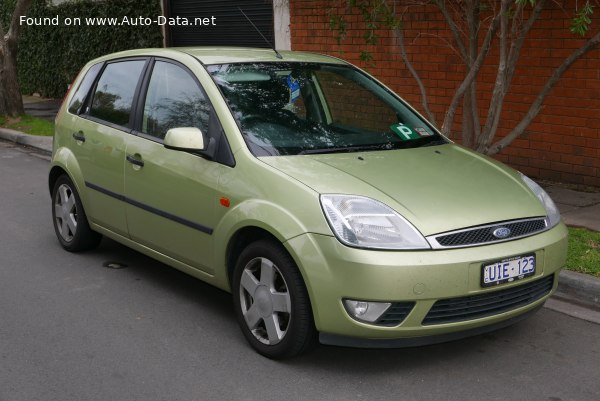

2002 Ford Fiesta VI (Mk6) 5 door - Photo 1

Ford Fiesta VI (Mk6) 5 door 1.25 Duratec (75 Hp) – Full specifications
General information
Brand Ford
Model Fiesta
Generation Fiesta VI (Mk6) 5 door
Modification (Engine) 1.25 Duratec (75 Hp)
Start of production 2002 year
End of production 2005 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 8.6 l/100 km
27.4 US mpg
32.8 UK mpg
11.6 km/l
Fuel consumption (economy) – extra urban 4.9 l/100 km
48 US mpg
57.6 UK mpg
20.4 km/l
Fuel consumption (economy) – combined 6.2 l/100 km
37.9 US mpg
45.6 UK mpg
16.1 km/l
CO2 emissions 148 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 14.5 sec
Acceleration 0 – 62 mph 14.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 13.8 sec
Maximum speed 163 km/h
101.28 mph
Weight-to-power ratio 14.8 kg/Hp, 67.8 Hp/tonne
Weight-to-torque ratio 10.1 kg/Nm, 99.4 Nm/tonne
Engine specs
Power 75 Hp @ 5500 rpm.
Power per litre 60.4 Hp/l
Torque 110 Nm @ 4200 rpm.
81.13 lb.-ft. @ 4200 rpm.
Engine layout Front, Transverse
Engine Model/Code FUJA, FUJB
Engine displacement 1242 cm3
75.79 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 71.9 mm
2.83 in.
Piston Stroke 76.5 mm
3.01 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.8 l
4.02 US qt | 3.34 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5 l
5.28 US qt | 4.4 UK qt

Space, Volume and weights
Kerb Weight 1107 kg
2440.52 lbs.
Max. weight 1540 kg
3395.12 lbs.
Max load 433 kg
954.6 lbs.
Trunk (boot) space – minimum 284 l
10.03 cu. ft.
Trunk (boot) space – maximum 947 l
33.44 cu. ft.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Permitted trailer load with brakes (12%) 600 kg
1322.77 lbs.
Permitted trailer load without brakes 500 kg
1102.31 lbs.
Dimensions
Length 3916 mm
154.17 in.
Width 1683 mm
66.26 in.
Width including mirrors 1905 mm
75 in.
Height 1463 mm
57.6 in.
Wheelbase 2486 mm
97.87 in.
Front track 1477 mm
58.15 in.
Rear (Back) track 1444 mm
56.85 in.
Minimum turning circle (turning diameter) 10.3 m
33.79 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Wishbone
Rear suspension Spring Strut
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 175/65 R14
Wheel rims size 14
