Specifications: Ford Fiesta VI (Mk6, facelift 2005) 3 door 1.4 Duratec (80 Hp) Durashift EST 2005, 2006, 2007, 2008

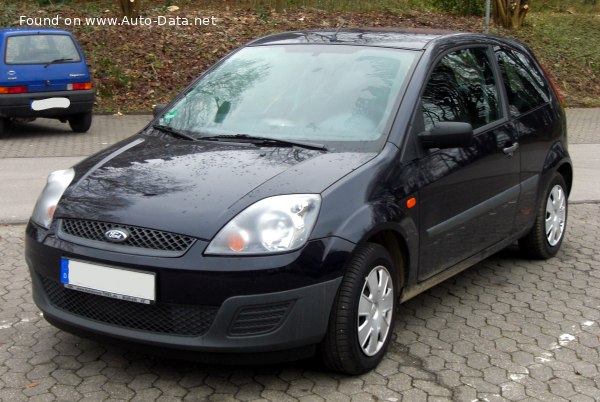

2005 Ford Fiesta VI (Mk6, facelift 2005) 3 door - Photo 1

Ford Fiesta VI (Mk6, facelift 2005) 3 door 1.4 Duratec (80 Hp) Durashift EST – Full specifications
General information
Brand Ford
Model Fiesta
Generation Fiesta VI (Mk6, facelift 2005) 3 door
Modification (Engine) 1.4 Duratec (80 Hp) Durashift EST
Start of production 2005 year
End of production 2008 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – urban (NEDC) 7.7 l/100 km
30.5 US mpg
36.7 UK mpg
13 km/l
Fuel consumption (economy) – extra urban (NEDC) 4.9 l/100 km
48 US mpg
57.6 UK mpg
20.4 km/l
Fuel consumption (economy) – combined (NEDC) 6 l/100 km
39.2 US mpg
47.1 UK mpg
16.7 km/l
CO2 emissions (NEDC) 142 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 14.6 sec
Acceleration 0 – 62 mph 14.6 sec
Acceleration 0 – 60 mph 13.7 sec
Maximum speed 166 km/h
103.15 mph
Emission standard Euro 4
Weight-to-power ratio 12.9 kg/Hp, 77.4 Hp/tonne
Weight-to-torque ratio 8.3 kg/Nm, 120 Nm/tonne
Engine specs
Power 80 Hp @ 5700 rpm.
Power per litre 57.6 Hp/l
Torque 124 Nm @ 3500 rpm.
91.46 lb.-ft. @ 3500 rpm.
Engine layout Front, Transverse
Engine Model/Code FXJA
Engine displacement 1388 cm3
84.7 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.8 l
4.02 US qt | 3.34 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5 l
5.28 US qt | 4.4 UK qt

Space, Volume and weights
Kerb Weight 1033 kg
2277.38 lbs.
Max. weight 1525 kg
3362.05 lbs.
Max load 492 kg
1084.67 lbs.
Trunk (boot) space – minimum 268 l
9.46 cu. ft.
Trunk (boot) space – maximum 945 l
33.37 cu. ft.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 500 kg
1102.31 lbs.
Dimensions
Length 3918 mm
154.25 in.
Width 1685 mm
66.34 in.
Width including mirrors 1907 mm
75.08 in.
Height 1468 mm
57.8 in.
Wheelbase 2486 mm
97.87 in.
Front track 1464-1477 mm
57.64 – 58.15 in.
Rear (Back) track 1434-1444 mm
56.46 – 56.85 in.
Minimum turning circle (turning diameter) 9.3 m
30.51 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission Durashift EST
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Coil spring, Elastic beam
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/50 R 15
Wheel rims size 15
