Specifications: Ford Fiesta VII (Mk7, facelift 2013) 3 door 1.0 EcoBoost (125 Hp) 2013, 2014, 2015, 2016, 2017

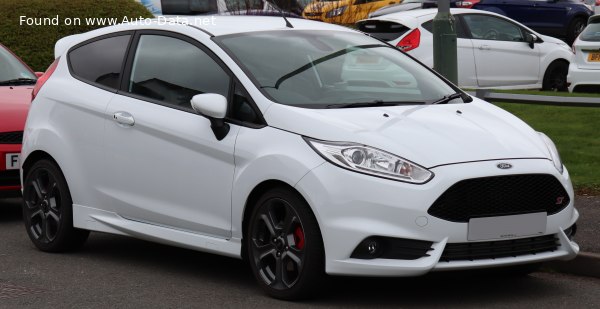

2013 Ford Fiesta VII (Mk7, facelift 2013) 3 door - Photo 1

Ford Fiesta VII (Mk7, facelift 2013) 3 door 1.0 EcoBoost (125 Hp) – Full specifications
General information
Brand Ford
Model Fiesta
Generation Fiesta VII (Mk7, facelift 2013) 3 door
Modification (Engine) 1.0 EcoBoost (125 Hp)
Start of production 2013 year
End of production 2017 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – urban 5.3 l/100 km
44.4 US mpg
53.3 UK mpg
18.9 km/l
Fuel consumption (economy) – extra urban 3.7 l/100 km
63.6 US mpg
76.3 UK mpg
27 km/l
Fuel consumption (economy) – combined 4.3 l/100 km
54.7 US mpg
65.7 UK mpg
23.3 km/l
CO2 emissions 99 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.4 sec
Acceleration 0 – 62 mph 9.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.9 sec
Maximum speed 196 km/h
121.79 mph
Emission standard Euro 5
Weight-to-power ratio 8.1 kg/Hp, 123 Hp/tonne
Weight-to-torque ratio 6 kg/Nm, 167.3 Nm/tonne
Engine specs
Power 125 Hp @ 6000 rpm.
Power per litre 125.3 Hp/l
Torque 170 Nm @ 1400-4500 rpm.
125.39 lb.-ft. @ 1400-4500 rpm.
Engine layout Front, Transverse
Engine Model/Code M1JE, M1JH
Engine displacement 998 cm3
60.9 cu. in.
Number of cylinders 3
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 4.1 l
4.33 US qt | 3.61 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.8 l
6.13 US qt | 5.1 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1016 kg
2239.9 lbs.
Max. weight 1550 kg
3417.17 lbs.
Max load 534 kg
1177.27 lbs.
Trunk (boot) space – minimum 281 l
9.92 cu. ft.
Trunk (boot) space – maximum 965 l
34.08 cu. ft.
Fuel tank capacity 42 l
11.1 US gal | 9.24 UK gal
Permitted trailer load with brakes (12%) 900 kg
1984.16 lbs.
Permitted trailer load without brakes 545 kg
1201.52 lbs.
Dimensions
Length 3969 mm
156.26 in.
Width 1722 mm
67.8 in.
Width with mirrors folded 1787 mm
70.35 in.
Width including mirrors 1973 mm
77.68 in.
Height 1495 mm
58.86 in.
Wheelbase 2489 mm
97.99 in.
Minimum turning circle (turning diameter) 10.2 m
33.46 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Coil spring, Torsion
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/55 R15
Wheel rims size 6J x 15
