Specifications: Ford Fiesta VII (Mk7, facelift 2013) 5 door 1.25 Duratec (60 Hp) 2013, 2014, 2015, 2016, 2017

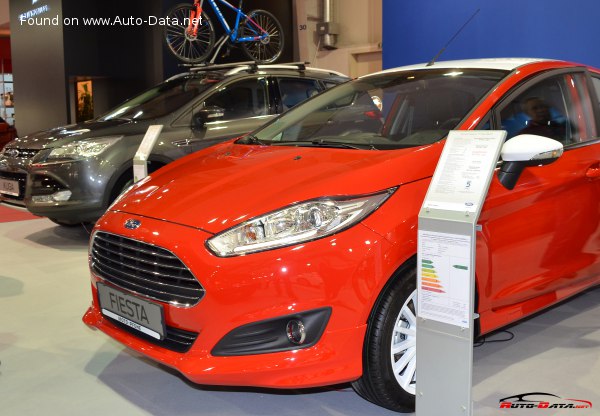

2013 Ford Fiesta VII (Mk7, facelift 2013) 5 door - Photo 1

Ford Fiesta VII (Mk7, facelift 2013) 5 door 1.25 Duratec (60 Hp) – Full specifications
General information
Brand Ford
Model Fiesta
Generation Fiesta VII (Mk7, facelift 2013) 5 door
Modification (Engine) 1.25 Duratec (60 Hp)
Start of production 2013 year
End of production 2017 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 6.9 l/100 km
34.1 US mpg
40.9 UK mpg
14.5 km/l
Fuel consumption (economy) – extra urban 4.2 l/100 km
56 US mpg
67.3 UK mpg
23.8 km/l
Fuel consumption (economy) – combined 5.2 l/100 km
45.2 US mpg
54.3 UK mpg
19.2 km/l
CO2 emissions 120 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 16.9 sec
Acceleration 0 – 62 mph 16.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 16.1 sec
Maximum speed 152 km/h
94.45 mph
Emission standard Euro 5
Weight-to-power ratio 16.2 kg/Hp, 61.9 Hp/tonne
Weight-to-torque ratio 8.9 kg/Nm, 112.4 Nm/tonne
Engine specs
Power 60 Hp @ 6000 rpm.
Power per litre 48.3 Hp/l
Torque 109 Nm @ 3600 rpm.
80.39 lb.-ft. @ 3600 rpm.
Engine layout Front, Transverse
Engine Model/Code STJA, STJB, STJC, STJD
Engine displacement 1242 cm3
75.79 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.5 l
5.81 US qt | 4.84 UK qt

Space, Volume and weights
Kerb Weight 970 kg
2138.48 lbs.
Max. weight 1530 kg
3373.07 lbs.
Max load 560 kg
1234.59 lbs.
Trunk (boot) space – minimum 281 l
9.92 cu. ft.
Trunk (boot) space – maximum 965 l
34.08 cu. ft.
Fuel tank capacity 42 l
11.1 US gal | 9.24 UK gal
Permitted trailer load with brakes (8%) 900 kg
1984.16 lbs.
Permitted trailer load with brakes (12%) 500 kg
1102.31 lbs.
Permitted trailer load without brakes 500 kg
1102.31 lbs.
Dimensions
Length 3969 mm
156.26 in.
Width 1722 mm
67.8 in.
Width with mirrors folded 1787 mm
70.35 in.
Width including mirrors 1973 mm
77.68 in.
Height 1495 mm
58.86 in.
Wheelbase 2489 mm
97.99 in.
Minimum turning circle (turning diameter) 10.2 m
33.46 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Coil spring, Torsion
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 175/65 R14; 195/55 R15
Wheel rims size 5.5J x 14; 6J x 15
