Specifications: Ford Focus Hatchback I 1.6 16V (100 Hp) 1999, 2000, 2001, 2002, 2003, 2004, 2005

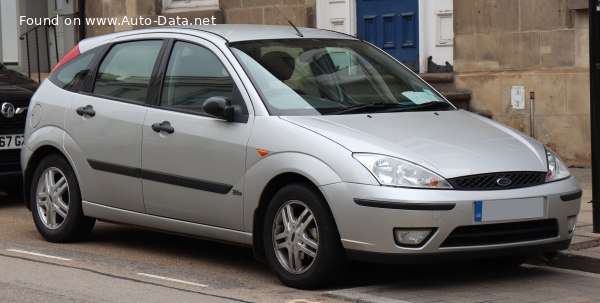

1999 Ford Focus Hatchback I - Photo 1

Ford Focus Hatchback I 1.6 16V (100 Hp) – Full specifications
General information
Brand Ford
Model Focus
Generation Focus Hatchback I
Modification (Engine) 1.6 16V (100 Hp)
Start of production 1999 year
End of production 2005 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3/5
Performance specs
Fuel consumption (economy) – urban 9.7 l/100 km
24.2 US mpg
29.1 UK mpg
10.3 km/l
Fuel consumption (economy) – extra urban 7 l/100 km
33.6 US mpg
40.4 UK mpg
14.3 km/l
Fuel consumption (economy) – combined 8 l/100 km
29.4 US mpg
35.3 UK mpg
12.5 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 11.2 sec
Acceleration 0 – 62 mph 11.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.6 sec
Maximum speed 185 km/h
114.95 mph
Weight-to-power ratio 10.7 kg/Hp, 93.5 Hp/tonne
Weight-to-torque ratio 7.5 kg/Nm, 133.6 Nm/tonne
Engine specs
Power 100 Hp @ 6000 rpm.
Power per litre 62.7 Hp/l
Torque 143 Nm @ 4000 rpm.
105.47 lb.-ft. @ 4000 rpm.
Engine layout Front, Transverse
Engine Model/Code FYDA, FYDC, FYDB, FYDD, FYDH
Engine displacement 1596 cm3
97.39 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79 mm
3.11 in.
Piston Stroke 81.4 mm
3.2 in.
Compression ratio 11:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.25 l
4.49 US qt | 3.74 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5 l
5.28 US qt | 4.4 UK qt

Space, Volume and weights
Kerb Weight 1070 kg
2358.95 lbs.
Max. weight 1590 kg
3505.35 lbs.
Max load 520 kg
1146.4 lbs.
Trunk (boot) space – minimum 350 l
12.36 cu. ft.
Trunk (boot) space – maximum 1210 l
42.73 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Dimensions
Length 4152 mm
163.46 in.
Width 1698 mm
66.85 in.
Height 1430 mm
56.3 in.
Wheelbase 2615 mm
102.95 in.
Front track 1484 mm
58.43 in.
Rear (Back) track 1477 mm
58.15 in.
Minimum turning circle (turning diameter) 10.4 m
34.12 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Wishbone
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 185/60 R15
Wheel rims size 15
