Specifications: Ford Focus II Hatchback ST 2.5 i 20V (225 Hp) 2005, 2006, 2007, 2008, 2009, 2010

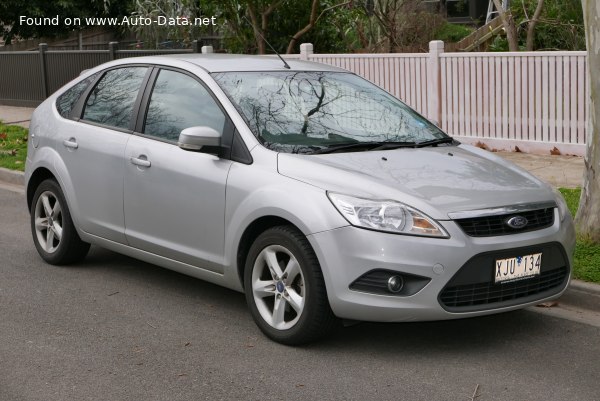

2005 Ford Focus II Hatchback - Photo 1

Ford Focus II Hatchback ST 2.5 i 20V (225 Hp) – Full specifications
General information
Brand Ford
Model Focus
Generation Focus II Hatchback
Modification (Engine) ST 2.5 i 20V (225 Hp)
Start of production 2005 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3/5
Performance specs
Fuel consumption (economy) – urban 13.8 l/100 km
17 US mpg
20.5 UK mpg
7.2 km/l
Fuel consumption (economy) – extra urban 6.8 l/100 km
34.6 US mpg
41.5 UK mpg
14.7 km/l
Fuel consumption (economy) – combined 9.3 l/100 km
25.3 US mpg
30.4 UK mpg
10.8 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 6.8 sec
Acceleration 0 – 62 mph 6.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.5 sec
Maximum speed 241 km/h
149.75 mph
Weight-to-power ratio 6.2 kg/Hp, 161.6 Hp/tonne
Weight-to-torque ratio 4.4 kg/Nm, 229.9 Nm/tonne
Engine specs
Power 225 Hp @ 6000 rpm.
Power per litre 89.2 Hp/l
Torque 320 Nm @ 1600 rpm.
236.02 lb.-ft. @ 1600 rpm.
Engine layout Front, Transverse
Engine Model/Code HYDA
Engine displacement 2522 cm3
153.9 cu. in.
Number of cylinders 5
Engine configuration Inline
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 93.2 mm
3.67 in.
Compression ratio 9:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5.8 l
6.13 US qt | 5.1 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.1 l
7.5 US qt | 6.25 UK qt

Space, Volume and weights
Kerb Weight 1392 kg
3068.83 lbs.
Max. weight 1860 kg
4100.6 lbs.
Max load 468 kg
1031.76 lbs.
Trunk (boot) space – minimum 385 l
13.6 cu. ft.
Trunk (boot) space – maximum 1247 l
44.04 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Dimensions
Length 4362 mm
171.73 in.
Width 1840 mm
72.44 in.
Height 1447 mm
56.97 in.
Wheelbase 2640 mm
103.94 in.
Front track 1535 mm
60.43 in.
Rear (Back) track 1531 mm
60.28 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Spring Strut
Rear suspension Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 225/40 R18
Wheel rims size 8J x 18
