Specifications: Ford Focus II Sedan 2.0 TDCi (136 Hp) 2005, 2006, 2007, 2008, 2009, 2010

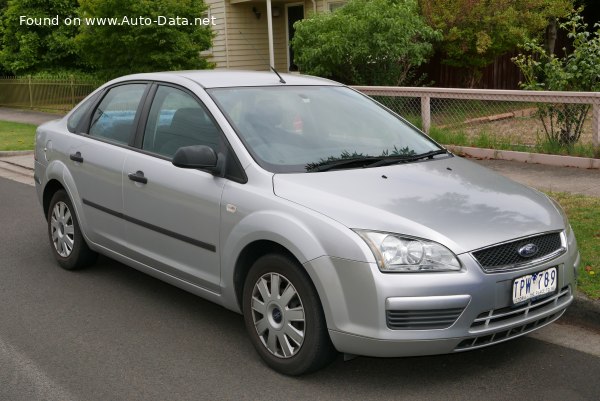

2005 Ford Focus II Sedan - Photo 1

Ford Focus II Sedan 2.0 TDCi (136 Hp) – Full specifications
General information
Brand Ford
Model Focus
Generation Focus II Sedan
Modification (Engine) 2.0 TDCi (136 Hp)
Start of production 2005 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 7.5 l/100 km
31.4 US mpg
37.7 UK mpg
13.3 km/l
Fuel consumption (economy) – extra urban 4.7 l/100 km
50 US mpg
60.1 UK mpg
21.3 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 9.4 sec
Acceleration 0 – 62 mph 9.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.9 sec
Maximum speed 205 km/h
127.38 mph
Weight-to-power ratio 9.9 kg/Hp, 100.7 Hp/tonne
Weight-to-torque ratio 4.2 kg/Nm, 237 Nm/tonne
Engine specs
Power 136 Hp @ 4000 rpm.
Power per litre 68.1 Hp/l
Torque 320 Nm @ 2000 rpm.
236.02 lb.-ft. @ 2000 rpm.
Engine layout Front, Transverse
Engine Model/Code G6DA, G6DB, G6DD
Engine displacement 1997 cm3
121.86 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 85 mm
3.35 in.
Piston Stroke 88 mm
3.46 in.
Compression ratio 18:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 5.5 l
5.81 US qt | 4.84 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.4 l
8.88 US qt | 7.39 UK qt

Space, Volume and weights
Kerb Weight 1350 kg
2976.24 lbs.
Max. weight 1905 kg
4199.81 lbs.
Max load 555 kg
1223.57 lbs.
Trunk (boot) space – minimum 467 l
16.49 cu. ft.
Trunk (boot) space – maximum 931 l
32.88 cu. ft.
Fuel tank capacity 53 l
14 US gal | 11.66 UK gal
Dimensions
Length 4488 mm
176.69 in.
Width 1840 mm
72.44 in.
Height 1497 mm
58.94 in.
Wheelbase 2640 mm
103.94 in.
Front track 1535 mm
60.43 in.
Rear (Back) track 1531 mm
60.28 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Spring Strut
Rear suspension Transverse stabilizer
Front brakes Disc
Rear brakes Disc
Steering type Steering rack and pinion
Tires size 205/55 R16
