Specifications: Ford Focus III Wagon 1.6 TDCi (115 Hp) 2010, 2011, 2012, 2013, 2014

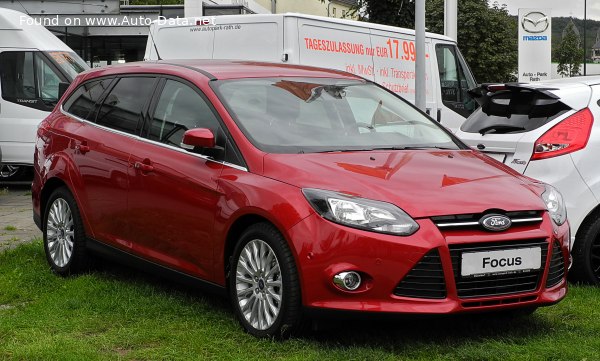

2013 Ford Focus III Wagon - Photo 1

Ford Focus III Wagon 1.6 TDCi (115 Hp) – Full specifications
General information
Brand Ford
Model Focus
Generation Focus III Wagon
Modification (Engine) 1.6 TDCi (115 Hp)
Start of production 2010 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.1 l/100 km
46.1 US mpg
55.4 UK mpg
19.6 km/l
Fuel consumption (economy) – extra urban 3.7 l/100 km
63.6 US mpg
76.3 UK mpg
27 km/l
Fuel consumption (economy) – combined 4.2 l/100 km
56 US mpg
67.3 UK mpg
23.8 km/l
CO2 emissions 109 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 11.1 sec
Acceleration 0 – 62 mph 11.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.5 sec
Maximum speed 193 km/h
119.92 mph
Emission standard Euro 5
Weight-to-power ratio 11.9 kg/Hp, 84.1 Hp/tonne
Weight-to-torque ratio 5.1 kg/Nm, 197.4 Nm/tonne
Engine specs
Power 115 Hp @ 3600 rpm.
Power per litre 73.7 Hp/l
Torque 270 Nm @ 1750-2500 rpm.
199.14 lb.-ft. @ 1750-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code T1DA, T1DB
Engine displacement 1560 cm3
95.2 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 75 mm
2.95 in.
Piston Stroke 88.3 mm
3.48 in.
Compression ratio 16:1
Number of valves per cylinder 2
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 3.8 l
4.02 US qt | 3.34 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.3 l
7.71 US qt | 6.42 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1368 kg
3015.92 lbs.
Max. weight 1900 kg
4188.78 lbs.
Max load 532 kg
1172.86 lbs.
Trunk (boot) space – minimum 490 l
17.3 cu. ft.
Trunk (boot) space – maximum 1516 l
53.54 cu. ft.
Fuel tank capacity 53 l
14 US gal | 11.66 UK gal
Dimensions
Length 4556 mm
179.37 in.
Width 1823 mm
71.77 in.
Height 1505 mm
59.25 in.
Wheelbase 2648 mm
104.25 in.
Front track 1544/1559 mm
60.79 in.
Rear (Back) track 1534/1549 mm
60.39 in.
Minimum turning circle (turning diameter) 11 m
36.09 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 205/55 R16; 205/55 R16; 215/55 R16; 215/50 R17; 235/40 R18
Wheel rims size 6.5J x 16; 7.0J x 16; 7.0J x 17; 8.0J x 18
