Specifications: Ford Galaxy I 1.9 TDI (116 Hp) 2000, 2001, 2002, 2003, 2004, 2005, 2006

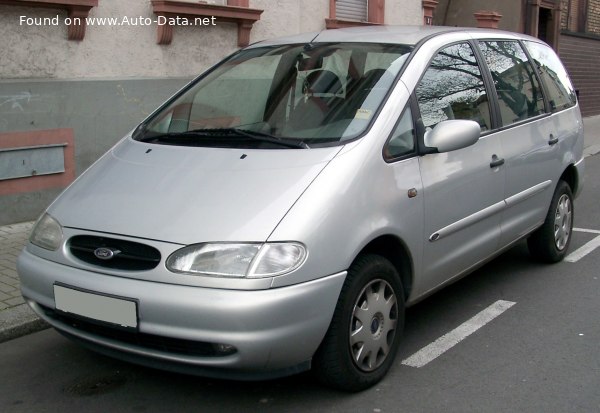

1995 Ford Galaxy I - Photo 1

Ford Galaxy I 1.9 TDI (116 Hp) – Full specifications
General information
Brand Ford
Model Galaxy
Generation Galaxy I
Modification (Engine) 1.9 TDI (116 Hp)
Start of production 2000 year
End of production 2006 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 7
Doors 5
Performance specs
Fuel consumption (economy) – urban 8.6 l/100 km
27.4 US mpg
32.8 UK mpg
11.6 km/l
Fuel consumption (economy) – extra urban 5.4 l/100 km
43.6 US mpg
52.3 UK mpg
18.5 km/l
Fuel consumption (economy) – combined 6.6 l/100 km
35.6 US mpg
42.8 UK mpg
15.2 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 13.7 sec
Acceleration 0 – 62 mph 13.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 13 sec
Maximum speed 181 km/h
112.47 mph
Weight-to-power ratio 14.9 kg/Hp, 67.2 Hp/tonne
Weight-to-torque ratio 6.1 kg/Nm, 165.2 Nm/tonne
Engine specs
Power 116 Hp @ 4000 rpm.
Power per litre 61.2 Hp/l
Torque 285 Nm @ 1900 rpm.
210.21 lb.-ft. @ 1900 rpm.
Engine layout Front, Transverse
Engine Model/Code AUY
Engine displacement 1896 cm3
115.7 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79.5 mm
3.13 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 18:1
Number of valves per cylinder 2
Fuel injection system Pump-nozzle (Unit Injector)
Engine aspiration Turbocharger, Intercooler
Valvetrain SOHC
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1725 kg
3802.97 lbs.
Max. weight 2420 kg
5335.19 lbs.
Max load 695 kg
1532.21 lbs.
Trunk (boot) space – minimum 266 l
9.39 cu. ft.
Trunk (boot) space – maximum 2610 l
92.17 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Dimensions
Length 4641 mm
182.72 in.
Width 1810 mm
71.26 in.
Height 1730 mm
68.11 in.
Wheelbase 2835 mm
111.61 in.
Front track 1530 mm
60.24 in.
Rear (Back) track 1524 mm
60 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Wishbone
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/65 R15
