Specifications: Ford Galaxy II 1.8 TDCi (125 Hp) 2006, 2007

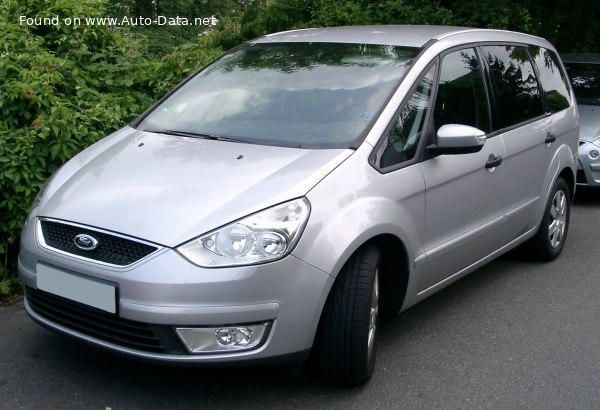

2006 Ford Galaxy II - Photo 1

Ford Galaxy II 1.8 TDCi (125 Hp) – Full specifications
General information
Brand Ford
Model Galaxy
Generation Galaxy II
Modification (Engine) 1.8 TDCi (125 Hp)
Start of production 2006 year
End of production 2007 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 7
Doors 5
Performance specs
Fuel consumption (economy) – urban 8 l/100 km
29.4 US mpg
35.3 UK mpg
12.5 km/l
Fuel consumption (economy) – extra urban 5.3 l/100 km
44.4 US mpg
53.3 UK mpg
18.9 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 11.9 sec
Acceleration 0 – 62 mph 11.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.3 sec
Maximum speed 187 km/h
116.2 mph
Weight-to-power ratio 13.8 kg/Hp, 72.7 Hp/tonne
Weight-to-torque ratio 5.1 kg/Nm, 197.7 Nm/tonne
Engine specs
Power 125 Hp @ 3850 rpm.
Power per litre 71.3 Hp/l
Torque 340 Nm @ 1750 rpm.
250.77 lb.-ft. @ 1750 rpm.
Engine layout Front, Transverse
Engine Model/Code QYWA
Engine displacement 1753 cm3
106.97 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 82 mm
3.23 in.
Compression ratio 18:1
Number of valves per cylinder 2
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 5.6 l
5.92 US qt | 4.93 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.9 l
8.35 US qt | 6.95 UK qt

Space, Volume and weights
Kerb Weight 1720 kg
3791.95 lbs.
Max. weight 2505 kg
5522.58 lbs.
Max load 785 kg
1730.63 lbs.
Trunk (boot) space – minimum 308 l
10.88 cu. ft.
Trunk (boot) space – maximum 2325 l
82.11 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Dimensions
Length 4820 mm
189.76 in.
Width 1854 mm
72.99 in.
Height 1723 mm
67.83 in.
Wheelbase 2850 mm
112.2 in.
Front track 1589 mm
62.56 in.
Rear (Back) track 1605 mm
63.19 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Disc
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 215/60R16
