Specifications: Ford KA II 1.3 TDCi (75 Hp) DPF 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016

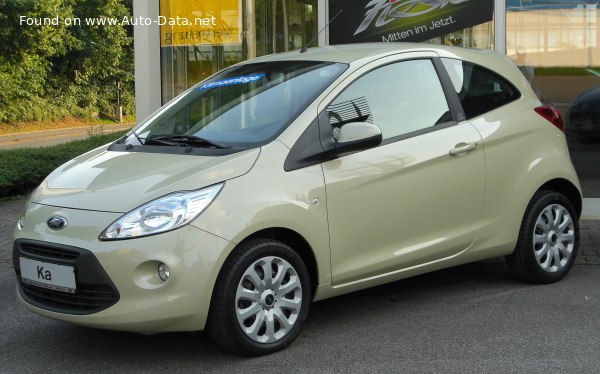

2009 Ford KA II - Photo 1

Ford KA II 1.3 TDCi (75 Hp) DPF – Full specifications
General information
Brand Ford
Model KA
Generation KA II
Modification (Engine) 1.3 TDCi (75 Hp) DPF
Start of production 2009 year
End of production 2016 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 4
Doors 3
Performance specs
Fuel consumption (economy) – urban (NEDC) 5.2 l/100 km
45.2 US mpg
54.3 UK mpg
19.2 km/l
Fuel consumption (economy) – extra urban (NEDC) 3.7 l/100 km
63.6 US mpg
76.3 UK mpg
27 km/l
Fuel consumption (economy) – combined (NEDC) 4.2 l/100 km
56 US mpg
67.3 UK mpg
23.8 km/l
CO2 emissions (NEDC) 112 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 13.1 sec
Acceleration 0 – 62 mph 13.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.4 sec
Maximum speed 161 km/h
100.04 mph
Emission standard Euro 4
Weight-to-power ratio 13.1 kg/Hp, 76.5 Hp/tonne
Weight-to-torque ratio 6.8 kg/Nm, 148 Nm/tonne
Engine specs
Power 75 Hp @ 4000 rpm.
Power per litre 60.1 Hp/l
Torque 145 Nm @ 1500-3500 rpm.
106.95 lb.-ft. @ 1500-3500 rpm.
Engine layout Front, Transverse
Engine Model/Code 169A5000
Engine displacement 1248 cm3
76.16 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 3 l
3.17 US qt | 2.64 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 980 kg
2160.53 lbs.
Max. weight 1415 kg
3119.54 lbs.
Max load 435 kg
959.01 lbs.
Trunk (boot) space – minimum 224 l
7.91 cu. ft.
Trunk (boot) space – maximum 710 l
25.07 cu. ft.
Fuel tank capacity 35 l
9.25 US gal | 7.7 UK gal
Max. roof load 50 kg
110.23 lbs.
Dimensions
Length 3620 mm
142.52 in.
Width 1658 mm
65.28 in.
Width with mirrors folded 1703 mm
67.05 in.
Width including mirrors 1894 mm
74.57 in.
Height 1506 mm
59.29 in.
Wheelbase 2300 mm
90.55 in.
Front track 1409 mm
55.47 in.
Rear (Back) track 1397 mm
55 in.
Minimum turning circle (turning diameter) 10.12 m
33.2 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Transverse stabilizer, Torsion
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 175/65 R14
Wheel rims size 5.5J x 14
