Specifications: Ford Kuga II 2.0 TDCi (163 Hp) 4×4 2012, 2013, 2014

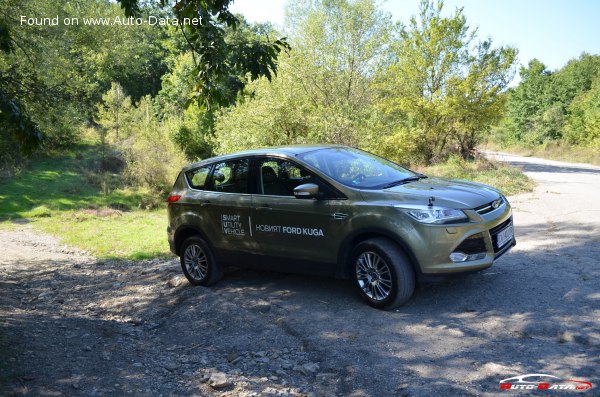

2012 Ford Kuga II - Photo 1

Ford Kuga II 2.0 TDCi (163 Hp) 4×4 – Full specifications
General information
Brand Ford
Model Kuga
Generation Kuga II
Modification (Engine) 2.0 TDCi (163 Hp) 4×4
Start of production 2012 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 7.2 l/100 km
32.7 US mpg
39.2 UK mpg
13.9 km/l
Fuel consumption (economy) – extra urban 5.1 l/100 km
46.1 US mpg
55.4 UK mpg
19.6 km/l
Fuel consumption (economy) – combined 5.9 l/100 km
39.9 US mpg
47.9 UK mpg
16.9 km/l
CO2 emissions 154 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 9.9 sec
Acceleration 0 – 62 mph 9.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.4 sec
Maximum speed 198 km/h
123.03 mph
Emission standard Euro 5
Weight-to-power ratio 10.4 kg/Hp, 96.3 Hp/tonne
Weight-to-torque ratio 5 kg/Nm, 200.9 Nm/tonne
Engine specs
Power 163 Hp @ 3750 rpm.
Power per litre 81.6 Hp/l
Torque 340 Nm @ 2000-3250 rpm.
250.77 lb.-ft. @ 2000-3250 rpm.
Engine layout Front, Transverse
Engine Model/Code TXDA, TXMA
Engine displacement 1997 cm3
121.86 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 85 mm
3.35 in.
Piston Stroke 88 mm
3.46 in.
Compression ratio 16:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5.7 l
6.02 US qt | 5.02 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.5 l
8.98 US qt | 7.48 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1692 kg
3730.22 lbs.
Max. weight 2250 kg
4960.4 lbs.
Max load 558 kg
1230.18 lbs.
Trunk (boot) space – minimum 425 l
15.01 cu. ft.
Trunk (boot) space – maximum 1568 l
55.37 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4524 mm
178.11 in.
Width 1838 mm
72.36 in.
Height 1701 mm
66.97 in.
Wheelbase 2690 mm
105.91 in.
Front track 1563 mm
61.54 in.
Rear (Back) track 1565 mm
61.61 in.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 235/55 R17; 235/50 R18; 235/45 R19
Wheel rims size 7.0J x 17; 7.5J x 17; 7.5J x 18; 8.0J x 19
