Specifications: Ford Mondeo II Wagon 2.0 TDCi (130 Hp) Automatic 2002, 2003, 2004, 2005, 2006, 2007

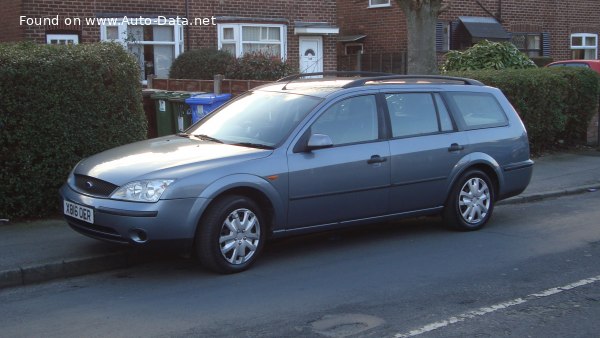

2001 Ford Mondeo II Wagon - Photo 1

Ford Mondeo II Wagon 2.0 TDCi (130 Hp) Automatic – Full specifications
General information
Brand Ford
Model Mondeo
Generation Mondeo II Wagon
Modification (Engine) 2.0 TDCi (130 Hp) Automatic
Start of production 2002 year
End of production 2007 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 10.2 l/100 km
23.1 US mpg
27.7 UK mpg
9.8 km/l
Fuel consumption (economy) – extra urban 5.9 l/100 km
39.9 US mpg
47.9 UK mpg
16.9 km/l
Fuel consumption (economy) – combined 7.5 l/100 km
31.4 US mpg
37.7 UK mpg
13.3 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 11.6 sec
Acceleration 0 – 62 mph 11.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11 sec
Maximum speed 197 km/h
122.41 mph
Weight-to-power ratio 11.5 kg/Hp, 87 Hp/tonne
Weight-to-torque ratio 4.5 kg/Nm, 220.7 Nm/tonne
Engine specs
Power 130 Hp @ 3800 rpm.
Power per litre 65.1 Hp/l
Torque 330 Nm @ 1800 rpm.
243.4 lb.-ft. @ 1800 rpm.
Engine layout Front, Transverse
Engine Model/Code FMBA, FMBB
Engine displacement 1998 cm3
121.93 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 86 mm
3.39 in.
Compression ratio 18.2:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 6 l
6.34 US qt | 5.28 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10.4 l
10.99 US qt | 9.15 UK qt

Space, Volume and weights
Kerb Weight 1495 kg
3295.91 lbs.
Max. weight 2165 kg
4773.01 lbs.
Max load 670 kg
1477.1 lbs.
Trunk (boot) space – minimum 540 l
19.07 cu. ft.
Trunk (boot) space – maximum 1700 l
60.03 cu. ft.
Fuel tank capacity 56 l
14.79 US gal | 12.32 UK gal
Dimensions
Length 4804 mm
189.13 in.
Width 1812 mm
71.34 in.
Height 1441 mm
56.73 in.
Wheelbase 2754 mm
108.43 in.
Front track 1522 mm
59.92 in.
Rear (Back) track 1537 mm
60.51 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, automatic transmission
Front suspension Wishbone
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/55 R16
Wheel rims size 16
