| General information | |
|---|---|
| Brand | Ford |

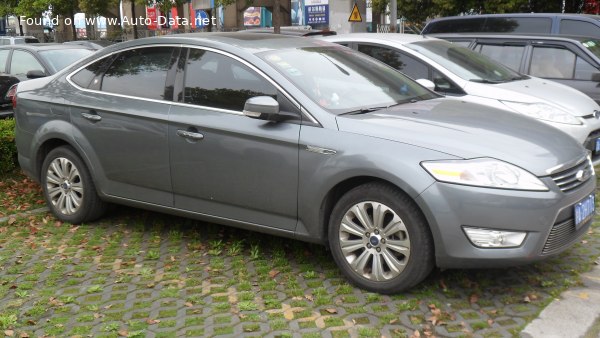

| Model | Mondeo |
| Generation | Mondeo III Sedan |
| Modification (Engine) | 2.2 TDCi (175 Hp) |
| Start of production | 2006 year |
| End of production | 2010 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Performance specs | |
| Fuel consumption (economy) – urban | 8.4 l/100 km 28 US mpg 33.6 UK mpg 11.9 km/l |
| Fuel consumption (economy) – extra urban | 4.9 l/100 km 48 US mpg 57.6 UK mpg 20.4 km/l |
| Fuel consumption (economy) – combined | 6.2 l/100 km 37.9 US mpg 45.6 UK mpg 16.1 km/l |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 8.7 sec |
| Acceleration 0 – 62 mph | 8.7 sec |
| Acceleration 0 – 60 mph (Calculated by Auto-Data.net) | 8.3 sec |
| Maximum speed | 223 km/h 138.57 mph |
| Emission standard | Euro 4 |
| Weight-to-power ratio | 8.5 kg/Hp, 118.2 Hp/tonne |
| Weight-to-torque ratio | 3.7 kg/Nm, 270.1 Nm/tonne |
| Engine specs | |
| Power | 175 Hp @ 4000 rpm. |
| Power per litre | 80.3 Hp/l |
| Torque | 400 Nm @ 1750 rpm. 295.02 lb.-ft. @ 1750 rpm. |
| Engine layout | Front, Transverse |
| Engine Model/Code | Q4BA |
| Engine displacement | 2179 cm3 132.97 cu. in. |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 85 mm 3.35 in. |
| Piston Stroke | 96 mm 3.78 in. |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Engine oil capacity | 6 l 6.34 US qt | 5.28 UK qt |
| Engine oil specification |  Log in to see. |
| Coolant | 8.4 l 8.88 US qt | 7.39 UK qt |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 1481 kg 3265.05 lbs. |
| Max. weight | 2170 kg 4784.03 lbs. |
| Max load | 689 kg 1518.98 lbs. |
| Trunk (boot) space – minimum | 550 l 19.42 cu. ft. |
| Fuel tank capacity | 70 l 18.49 US gal | 15.4 UK gal |
| Dimensions | |
| Length | 4844 mm 190.71 in. |
| Width | 1886 mm 74.25 in. |
| Height | 1500 mm 59.06 in. |
| Wheelbase | 2850 mm 112.2 in. |
| Front track | 1522 mm 59.92 in. |
| Rear (Back) track | 1537 mm 60.51 in. |
| Minimum turning circle (turning diameter) | 11.1 m 36.42 ft. |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 6 gears, manual transmission |
| Front suspension | Coil spring |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 205/55 R16 |
