Specifications: Ford Mustang IV 4.6 i V8 32V Cobra R (390 Hp) 2003, 2004

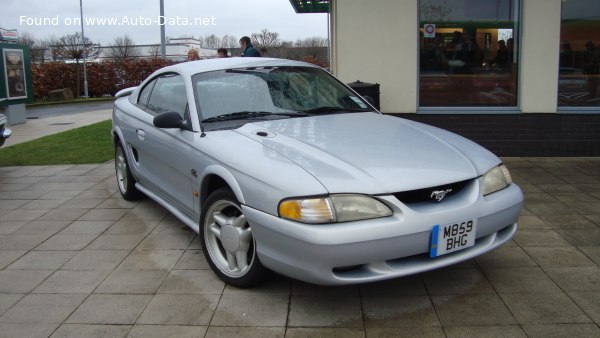

1994 Ford Mustang IV - Photo 1

Ford Mustang IV 4.6 i V8 32V Cobra R (390 Hp) – Full specifications
General information
Brand Ford
Model Mustang
Generation Mustang IV
Modification (Engine) 4.6 i V8 32V Cobra R (390 Hp)
Start of production 2003 year
End of production 2004 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban 14.7 l/100 km
16 US mpg
19.2 UK mpg
6.8 km/l
Fuel consumption (economy) – extra urban 10.7 l/100 km
22 US mpg
26.4 UK mpg
9.3 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 4.9 sec
Acceleration 0 – 62 mph 4.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 4.7 sec
Maximum speed 280 km/h
173.98 mph
Weight-to-power ratio 4.3 kg/Hp, 234.2 Hp/tonne
Weight-to-torque ratio 3.1 kg/Nm, 317.7 Nm/tonne
Engine specs
Power 390 Hp @ 6000 rpm.
Power per litre 84.8 Hp/l
Torque 529 Nm @ 3500 rpm.
390.17 lb.-ft. @ 3500 rpm.
Engine layout Front, Longitudinal
Engine displacement 4601 cm3
280.77 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 90.2 mm
3.55 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 8.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Supercharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5.7 l
6.02 US qt | 5.02 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1665 kg
3670.7 lbs.
Trunk (boot) space – minimum 310 l
10.95 cu. ft.
Fuel tank capacity 59 l
15.59 US gal | 12.98 UK gal
Dimensions
Length 4661 mm
183.5 in.
Width 1857 mm
73.11 in.
Height 1336 mm
52.6 in.
Wheelbase 2573 mm
101.3 in.
Front track 1530 mm
60.24 in.
Rear (Back) track 1530 mm
60.24 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Wishbone
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 245/40 R17
