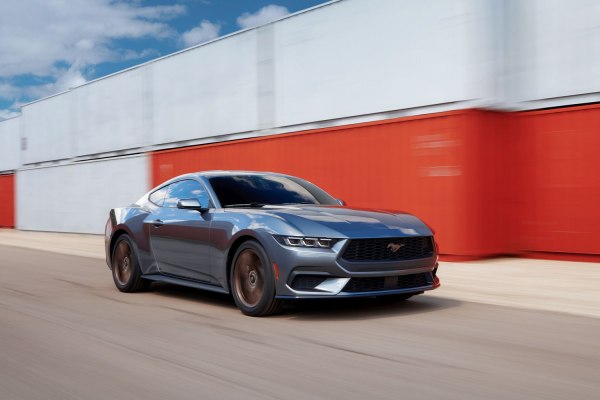

2024 Ford Mustang VII - Photo 1

Ford Mustang VII 2.3 EcoBoost (315 Hp) SelectShift – Full specifications
General information
Brand Ford
Model Mustang
Generation Mustang VII
Modification (Engine) 2.3 EcoBoost (315 Hp) SelectShift
Start of production 2023 year
Powertrain Architecture Internal Combustion engine
Body type Coupe, Fastback
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban 10.7 l/100 km
22 US mpg
26.4 UK mpg
9.3 km/l
Fuel consumption (economy) – extra urban 7.1 l/100 km
33.1 US mpg
39.8 UK mpg
14.1 km/l
Fuel consumption (economy) – combined 9 l/100 km
26.1 US mpg
31.4 UK mpg
11.1 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 5.2 kg/Hp, 193.6 Hp/tonne
Weight-to-torque ratio 3.4 kg/Nm, 291.9 Nm/tonne
Engine specs
Power 315 Hp @ 5500 rpm.
Power per litre 139.3 Hp/l
Torque 475 Nm @ 3000 rpm.
350.34 lb.-ft. @ 3000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EcoBoost
Engine displacement 2261 cm3
137.97 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 102 mm
4.02 in.
Compression ratio 10.6:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Twin-scroll turbo, Intercooler
Valvetrain DOHC, Ti-VCT
Engine oil capacity 5.7 l
6.02 US qt | 5.02 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.9 l
10.46 US qt | 8.71 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1627 kg
3586.92 lbs.
Trunk (boot) space – minimum 382 l
13.49 cu. ft.
Fuel tank capacity 61 l
16.11 US gal | 13.42 UK gal
Dimensions
Length 4811 mm
189.41 in.
Width 1915 mm
75.39 in.
Width with mirrors folded 1933 mm
76.1 in.
Width including mirrors 2080 mm
81.89 in.
Height 1397 mm
55 in.
Wheelbase 2718 mm
107.01 in.
Front track 1575 mm
62.01 in.
Rear (Back) track 1643 mm
64.69 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 10 gears, automatic transmission SelectShift
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 320×30 mm
Rear brakes Disc, 320×12 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/55 R17; 235/50 R18; 255/40 R19; 265/35 R20
Wheel rims size 7.5J x 17; 8J x 18; 8.5J x 19; 9J x 20
