Specifications: Ford Puma (facelift 2024) 1.0 EcoBoost (125 Hp) Mild Hybrid 2024, 2025

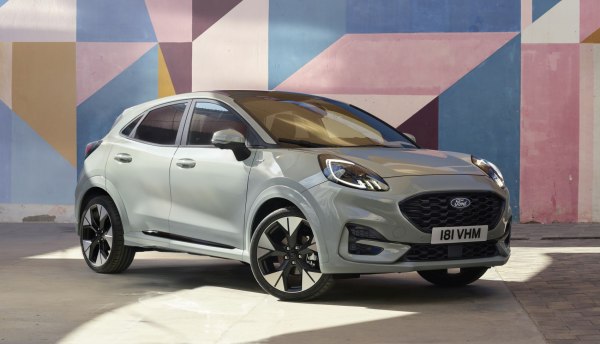

2024 Ford Puma (facelift 2024) - Photo 1

Ford Puma (facelift 2024) 1.0 EcoBoost (125 Hp) Mild Hybrid – Full specifications
General information
Brand Ford
Model Puma
Generation Puma (facelift 2024)
Modification (Engine) 1.0 EcoBoost (125 Hp) Mild Hybrid
Start of production February, 2024 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type SUV, Crossover
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 5.3-6 l/100 km
44.4 – 39.2 US mpg
53.3 – 47.1 UK mpg
18.9 – 16.7 km/l
CO2 emissions (WLTP) 119-135 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.8 sec
Acceleration 0 – 62 mph 9.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.3 sec
Maximum speed 191 km/h
118.68 mph
Emission standard Euro 6d
Weight-to-power ratio 9.9 kg/Hp, 100.7 Hp/tonne
Weight-to-torque ratio 5.9 kg/Nm, 169.2 Nm/tonne
Electric cars and hybrids specs
Battery voltage 48 V
Battery technology Lithium-ion (Li-Ion)
Battery location Under the front seats
Electric motor 1
Electric motor power 16 Hp
Electric motor location Front, Transverse
Internal combustion engine specs
Power 125 Hp @ 6000 rpm.
Power per litre 125.1 Hp/l
Torque 210 Nm @ 1750 rpm.
154.89 lb.-ft. @ 1750 rpm.
Engine layout Front, Transverse
Engine displacement 999 cm3
60.96 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 71.9 mm
2.83 in.
Piston Stroke 82 mm
3.23 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC, Ti-VCT
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1241 kg
2735.94 lbs.
Max. weight 1785 kg
3935.25 lbs.
Max load 544 kg
1199.31 lbs.
Trunk (boot) space – minimum 456 l
16.1 cu. ft.
Trunk (boot) space – maximum 1216 l
42.94 cu. ft.
Fuel tank capacity 42 l
11.1 US gal | 9.24 UK gal
Max. roof load 50 kg
110.23 lbs.
Permitted trailer load with brakes (12%) 1100 kg
2425.08 lbs.
Permitted trailer load without brakes 640 kg
1410.96 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4186 mm
164.8 in.
Width with mirrors folded 1805 mm
71.06 in.
Width including mirrors 1930 mm
75.98 in.
Height 1550 mm
61.02 in.
Wheelbase 2588 mm
101.89 in.
Front track 1567 mm
61.69 in.
Rear (Back) track 1526 mm
60.08 in.
Front overhang 850 mm
33.46 in.
Rear overhang 748 mm
29.45 in.
Ride height (ground clearance) 163 mm
6.42 in.
Minimum turning circle (turning diameter) 10.4 m
34.12 ft.
Approach angle 17.5°
Departure angle 26.6°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work only in mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Coil spring, Elastic beam
Front brakes Ventilated discs, 278×25 mm
Rear brakes Drum, 228×40 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/55 R17; 215/50 R18; 225/40 R19
Wheel rims size 7J x 17; 7J x 18; 7.5J x 19
