Specifications: Ford Puma (facelift 2024) Gen-E 43 kWh (168 Hp) Electric 2024, 2025

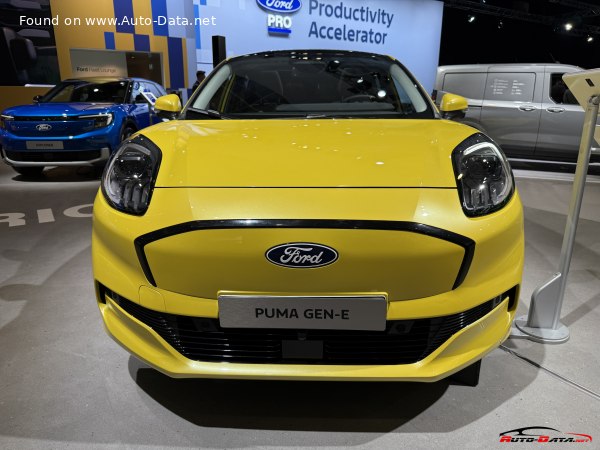

2024 Ford Puma (facelift 2024) - Photo 1

Ford Puma (facelift 2024) Gen-E 43 kWh (168 Hp) Electric – Full specifications
General information
Brand Ford
Model Puma
Generation Puma (facelift 2024)
Modification (Engine) Gen-E 43 kWh (168 Hp) Electric
Start of production December, 2024 year
Powertrain Architecture BEV (Electric Vehicle)
Body type SUV, Crossover
Seats 5
Doors 5
Performance specs
Fuel Type Electricity
Acceleration 0 – 100 km/h 8 sec
Acceleration 0 – 62 mph 8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.6 sec
Maximum speed 160 km/h
99.42 mph
Weight-to-power ratio 8.9 kg/Hp, 112.9 Hp/tonne
Weight-to-torque ratio 5.1 kg/Nm, 194.9 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 43 kWh
Battery technology Lithium nickel manganese cobalt oxides (Li-NMC)
Battery location Below the floor
All-electric range (WLTP) 347-376 km
215.62 – 233.64 mi
Average Energy consumption (WLTP) 13.1-14.5 kWh/100 km

21.08 – 23.34 kWh/100 mi
160 – 144 MPGe
7.6 – 6.9 km/kWh
4.7 – 4.3 mi/kWh
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 168 Hp
Electric motor Torque 290 Nm

213.89 lb.-ft.
Electric motor location Front axle, Transverse
Electric motor type Synchronous
System power 168 Hp
System torque 290 Nm
213.89 lb.-ft.

Space, Volume and weights
Kerb Weight 1488 kg
3280.48 lbs.
Max. weight 2015 kg
4442.31 lbs.
Max load 527 kg
1161.84 lbs.
Trunk (boot) space – minimum 574 l
20.27 cu. ft.
Trunk (boot) space – maximum 1283 l
45.31 cu. ft.
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 750 kg
1653.47 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4214 mm
165.91 in.
Width 1805 mm
71.06 in.
Width with mirrors folded 1805 mm
71.06 in.
Width including mirrors 1930 mm
75.98 in.
Height 1555 mm
61.22 in.
Wheelbase 2588 mm
101.89 in.
Front track 1567 mm
61.69 in.
Rear (Back) track 1540 mm
60.63 in.
Front overhang 863 mm
33.98 in.
Rear overhang 763 mm
30.04 in.
Ride height (ground clearance) 129 mm
5.08 in.
Minimum turning circle (turning diameter) 10.5 m
34.45 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture One electric motor drives the front wheels.
Drive wheel Front wheel drive
Number of gears and type of gearbox 1 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Transverse stabilizer, Coil spring, Elastic beam
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/55 R17; 215/50 R18; 225/40 R19
Wheel rims size 7.0J x 17; 7.0J x 18; 7.5J x 19
