Specifications: Ford Ranger V SuperCrew (Americas) 2.3 EcoBoost (270 Hp) Automatic 2023, 2024, 2025

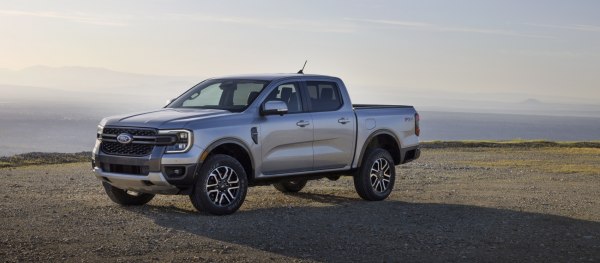

2024 Ford Ranger V SuperCrew (Americas) - Photo 1

Ford Ranger V SuperCrew (Americas) 2.3 EcoBoost (270 Hp) Automatic – Full specifications
General information
Brand Ford
Model Ranger
Generation Ranger V SuperCrew (Americas)
Modification (Engine) 2.3 EcoBoost (270 Hp) Automatic
Start of production May, 2023 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 5
Doors 4
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 7.1 kg/Hp, 141.7 Hp/tonne
Weight-to-torque ratio 4.5 kg/Nm, 220.4 Nm/tonne
Engine specs
Power 270 Hp
Power per litre 117.7 Hp/l
Torque 420 Nm
309.78 lb.-ft.
Engine layout Front, Longitudinal
Engine Model/Code EcoBoost
Engine displacement 2294 cm3
139.99 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 87.63 mm
3.45 in.
Piston Stroke 94 mm
3.7 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC, Ti-VCT
Engine oil capacity 5.7 l
6.02 US qt | 5.02 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1906 kg
4202.01 lbs.
Max. weight 2744 kg
6049.48 lbs.
Max load 838 kg
1847.47 lbs.
Trunk (boot) space – maximum 1232 l
43.51 cu. ft.
Fuel tank capacity 71 l
18.76 US gal | 15.62 UK gal
Permitted trailer load with brakes (12%) 3402 kg
7500.13 lbs.
Dimensions
Length 5349 mm
210.59 in.
Width 1918 mm
75.51 in.
Width with mirrors folded 2007 mm
79.02 in.
Width including mirrors 2202 mm
86.69 in.
Height 1877 mm
73.9 in.
Wheelbase 3269 mm
128.7 in.
Front track 1621 mm
63.82 in.
Rear (Back) track 1621 mm
63.82 in.
Front overhang 866 mm
34.09 in.
Rear overhang 1214 mm
47.8 in.
Ride height (ground clearance) 224 mm
8.82 in.
Minimum turning circle (turning diameter) 13 m
42.65 ft.
Approach angle 29.2°
Departure angle 25.1°
Ramp-over (brakeover) angle 21.8°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 10 gears, automatic transmission
Front suspension Double wishbone, Transverse stabilizer
Rear suspension dependent spring suspension, Leaf spring
Front brakes Disc, 310.9×33.78 mm
Rear brakes Disc, 307.85×23.88 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 255/70 R17; 255/65 R18
Wheel rims size 17; 18
