Specifications: Ford S-MAX 2.0 TDCi (140 Hp) 2006, 2007, 2008, 2009, 2010

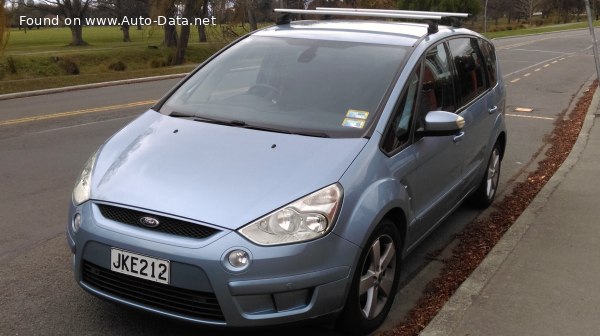

2005 Ford S-MAX - Photo 1

Ford S-MAX 2.0 TDCi (140 Hp) – Full specifications
General information
Brand Ford
Model S-MAX
Generation S-MAX
Modification (Engine) 2.0 TDCi (140 Hp)
Start of production 2006 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 7
Doors 5
Performance specs
Fuel consumption (economy) – urban 8.1 l/100 km
29 US mpg
34.9 UK mpg
12.3 km/l
Fuel consumption (economy) – extra urban 5.4 l/100 km
43.6 US mpg
52.3 UK mpg
18.5 km/l
Fuel consumption (economy) – combined 6.4 l/100 km
36.8 US mpg
44.1 UK mpg
15.6 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 10.2 sec
Acceleration 0 – 62 mph 10.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.7 sec
Maximum speed 196 km/h
121.79 mph
Emission standard Euro 4
Weight-to-power ratio 12.4 kg/Hp, 80.6 Hp/tonne
Weight-to-torque ratio 5.4 kg/Nm, 184.3 Nm/tonne
Engine specs
Power 140 Hp @ 4000 rpm.
Power per litre 70.1 Hp/l
Torque 320 Nm @ 1750 rpm.
236.02 lb.-ft. @ 1750 rpm.
Engine layout Front, Transverse
Engine Model/Code QXWA, QXWB, QXWC
Engine displacement 1997 cm3
121.86 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 85 mm
3.35 in.
Piston Stroke 88 mm
3.46 in.
Compression ratio 17.9:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 5.5 l
5.81 US qt | 4.84 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.1 l
8.56 US qt | 7.13 UK qt

Space, Volume and weights
Kerb Weight 1736 kg
3827.22 lbs.
Max. weight 2505 kg
5522.58 lbs.
Max load 769 kg
1695.35 lbs.
Trunk (boot) space – minimum 854 l
30.16 cu. ft.
Trunk (boot) space – maximum 2100 l
74.16 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Dimensions
Length 4768 mm
187.72 in.
Width 1884 mm
74.17 in.
Height 1658 mm
65.28 in.
Wheelbase 2850 mm
112.2 in.
Front track 1589 mm
62.56 in.
Rear (Back) track 1605 mm
63.19 in.
Minimum turning circle (turning diameter) 11.6 m
38.06 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Spring Strut
Rear suspension Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 215/60 R16
Wheel rims size 6.5J x 16 5×108
