Specifications: Ford S-MAX II (facelift 2019) 1.5 EcoBoost (165 Hp) 2019, 2020, 2021, 2022, 2023

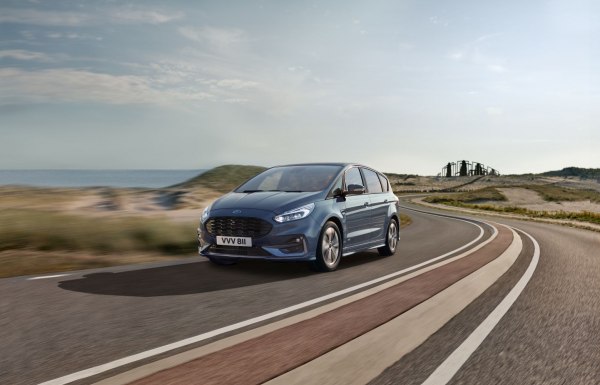

2020 Ford S-MAX II (facelift 2019) - Photo 1

Ford S-MAX II (facelift 2019) 1.5 EcoBoost (165 Hp) – Full specifications
General information
Brand Ford
Model S-MAX
Generation S-MAX II (facelift 2019)
Modification (Engine) 1.5 EcoBoost (165 Hp)
Start of production November, 2019 year
End of production April, 2023 year
Powertrain Architecture Internal Combustion engine
Body type MPV
Seats 5-7
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC, WLTP equivalent) 9.7-10.2 l/100 km
24.2 – 23.1 US mpg
29.1 – 27.7 UK mpg
10.3 – 9.8 km/l
Fuel consumption (economy) – extra urban (NEDC, WLTP equivalent) 6.1-6.3 l/100 km
38.6 – 37.3 US mpg
46.3 – 44.8 UK mpg
16.4 – 15.9 km/l
Fuel consumption (economy) – combined (NEDC, WLTP equivalent) 7.4-7.6 l/100 km
31.8 – 30.9 US mpg
38.2 – 37.2 UK mpg
13.5 – 13.2 km/l
CO2 emissions (NEDC, WLTP equivalent) 170-175 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.2 sec
Acceleration 0 – 62 mph 10.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.7 sec
Maximum speed 203 km/h
126.14 mph
Emission standard Euro 6d-TEMP-EVAP-ISC
Weight-to-power ratio 10.4 kg/Hp, 96.5 Hp/tonne
Weight-to-torque ratio 7.1 kg/Nm, 141.6 Nm/tonne
Engine specs
Power 165 Hp @ 5500-6000 rpm.
Torque 242 Nm @ 1650-4500 rpm.
178.49 lb.-ft. @ 1650-4500 rpm.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 4.1 l
4.33 US qt | 3.61 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10.7 l
11.31 US qt | 9.41 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1709 kg
3767.7 lbs.
Max. weight 2450 kg
5401.33 lbs.
Max load 741 kg
1633.63 lbs.
Trunk (boot) space – minimum 965 l
34.08 cu. ft.
Trunk (boot) space – maximum 2020 l
71.34 cu. ft.
Fuel tank capacity 65 l
17.17 US gal | 14.3 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 1800 kg
3968.32 lbs.
Permitted trailer load with brakes (12%) 1600 kg
3527.4 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 90 kg
198.42 lbs.
Dimensions
Length 4796 mm
188.82 in.
Width 1916 mm
75.43 in.
Width with mirrors folded 1953 mm
76.89 in.
Width including mirrors 2137 mm
84.13 in.
Height 1655 mm
65.16 in.
Wheelbase 2850 mm
112.2 in.
Minimum turning circle (turning diameter) 11.95 m
39.21 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/55 R17; 235/50 R18
Wheel rims size 7.5J x 17; 7.5J x 18
