Specifications: Ford S-MAX II (facelift 2019) 2.5 (190 Hp) Hybrid CVT 2021, 2022, 2023

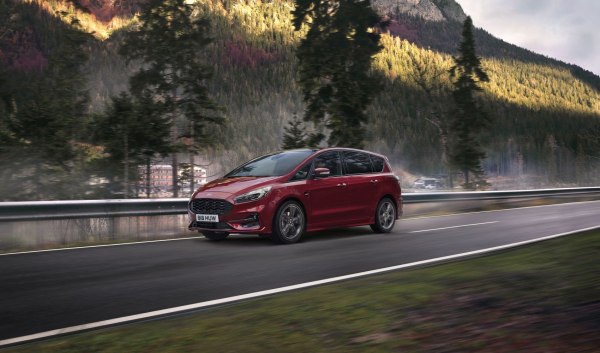

2020 Ford S-MAX II (facelift 2019) - Photo 1

Ford S-MAX II (facelift 2019) 2.5 (190 Hp) Hybrid CVT – Full specifications
General information
Brand Ford
Model S-MAX
Generation S-MAX II (facelift 2019)
Modification (Engine) 2.5 (190 Hp) Hybrid CVT
Start of production February, 2021 year
End of production April, 2023 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type MPV
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 6.4 l/100 km
36.8 US mpg
44.1 UK mpg
15.6 km/l
CO2 emissions (WLTP) 146-147 g/km
Fuel consumption (economy) – urban (NEDC) 6.3 l/100 km
37.3 US mpg
44.8 UK mpg
15.9 km/l
Fuel consumption (economy) – extra urban (NEDC) 5.2 l/100 km
45.2 US mpg
54.3 UK mpg
19.2 km/l
Fuel consumption (economy) – combined (NEDC) 5.6 l/100 km
42 US mpg
50.4 UK mpg
17.9 km/l
CO2 emissions (NEDC) 128-129 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.8 sec
Acceleration 0 – 62 mph 9.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.3 sec
Maximum speed 185 km/h
114.95 mph
Emission standard Euro 6d-ISC-FCM
Weight-to-power ratio 9.6 kg/Hp, 104 Hp/tonne
Weight-to-torque ratio 9.1 kg/Nm, 109.5 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 1.1 kWh
Battery technology Lithium-ion (Li-Ion)
Battery location Below the floor
Under the trunk
Electric motor 1
Electric motor power 133 Hp
Electric motor type Synchronous
System power 190 Hp @ 5500 rpm.
System torque 200 Nm
147.51 lb.-ft.
Internal combustion engine specs
Power 150 Hp
Power per litre 60.3 Hp/l
Torque 200 Nm
147.51 lb.-ft.
Engine layout Front, Transverse
Engine Model/Code BGCA
Engine displacement 2488 cm3
151.83 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 89 mm
3.5 in.
Piston Stroke 100 mm
3.94 in.
Compression ratio 13:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, VCT
Engine oil capacity 5.4 l
5.71 US qt | 4.75 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1827 kg
4027.85 lbs.
Max. weight 2350 kg
5180.86 lbs.
Max load 523 kg
1153.02 lbs.
Trunk (boot) space – minimum 700 l
24.72 cu. ft.
Trunk (boot) space – maximum 2200 l
77.69 cu. ft.
Fuel tank capacity 65 l
17.17 US gal | 14.3 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 1750 kg
3858.09 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 4804 mm
189.13 in.
Width 1916 mm
75.43 in.
Width with mirrors folded 1953 mm
76.89 in.
Width including mirrors 2137 mm
84.13 in.
Height 1684-1710 mm
66.3 – 67.32 in.
Wheelbase 2850 mm
112.2 in.
Front track 1606 mm
63.23 in.
Rear (Back) track 1606 mm
63.23 in.
Ride height (ground clearance) 141 mm
5.55 in.
Minimum turning circle (turning diameter) 11.95 m
39.21 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission CVT
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 316×28 mm
Rear brakes Disc, 316×11 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/55 R17; 235/50 R18; 245/45 R19
Wheel rims size 7.5J x 17; 7.5J x 18; 8J x 19
