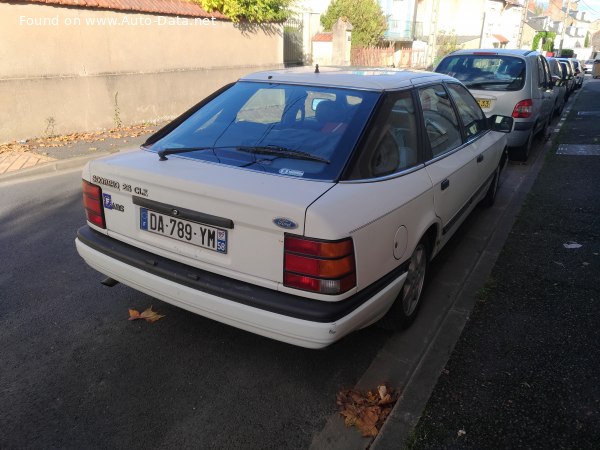

Specifications: Ford Scorpio I Hatch (GGE) 2.0i (120 Hp) 1989, 1990, 1991, 1992

Ford Scorpio I Hatch (GGE) 2.0i (120 Hp) – Full specifications
General information
Brand	Ford
Model	Scorpio
Generation	Scorpio I Hatch (GGE)
Modification (Engine)	2.0i (120 Hp)
Start of production	1989 year
End of production	1992 year
Powertrain Architecture	Internal Combustion engine
Body type	Hatchback
Seats	4
Doors	5
Performance specs
Fuel Type	Petrol (Gasoline)
Engine specs
Power	120 Hp @ 5600 rpm.
Power per litre	60.1 Hp/l
Torque	171 Nm @ 2500 rpm. 126.12 lb.-ft. @ 2500 rpm.
Engine layout	Front, Longitudinal
Engine Model/Code	N9D
Engine displacement	1998 cm³ 121.93 cu. in.
Number of cylinders	4
Engine configuration	Inline
Cylinder Bore	86 mm 3.39 in.
Piston Stroke	86 mm 3.39 in.
Number of valves per cylinder	4
Fuel injection system	Multi-port manifold injection
Engine aspiration	Naturally aspirated engine
Valvetrain	DOHC
Engine oil capacity	4.5 l 4.76 US qt \| 3.96 UK qt
Engine oil specification	Log in to see.
Coolant	8.1 l 8.56 US qt \| 7.13 UK qt

Space, Volume and weights
Fuel tank capacity	70 l 18.49 US gal \| 15.4 UK gal
Dimensions
Length	4469 mm 175.94 in.
Width	1760 mm 69.29 in.
Height	1440 mm 56.69 in.
Wheelbase	2761 mm 108.7 in.
Minimum turning circle (turning diameter)	10.4 m 34.12 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture	The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel	Rear wheel drive
Number of gears and type of gearbox	5 gears, manual transmission
Front brakes	Ventilated discs
Rear brakes	Disc
Steering type	Steering rack and pinion
Power steering	Hydraulic Steering
