Specifications: Ford Tourneo Connect III 1.5 EcoBoost (114 Hp) 2022, 2023, 2024, 2025

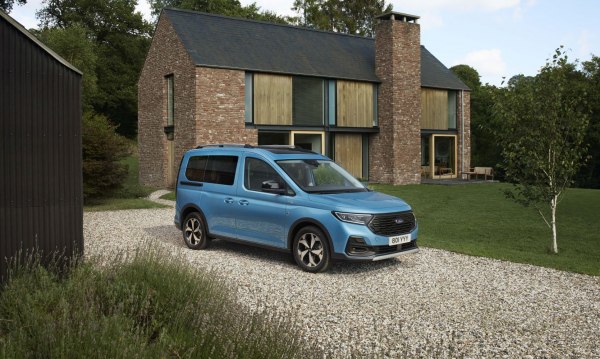

2022 Ford Tourneo Connect III - Photo 1

Ford Tourneo Connect III 1.5 EcoBoost (114 Hp) – Full specifications
General information
Brand Ford
Model Tourneo Connect
Generation Tourneo Connect III
Modification (Engine) 1.5 EcoBoost (114 Hp)
Start of production 2022 year
Powertrain Architecture Internal Combustion engine
Body type MPV
Seats 5
Doors 5
Performance specs
Fuel consumption at Low speed (WLTP) 9-7.9 l/100 km
26.1 – 29.8 US mpg
31.4 – 35.8 UK mpg
11.1 – 12.7 km/l
Fuel consumption at Medium speed (WLTP) 7.1-6.1 l/100 km
33.1 – 38.6 US mpg
39.8 – 46.3 UK mpg
14.1 – 16.4 km/l
Fuel consumption at high speed (WLTP) 7.1-5.4 l/100 km
33.1 – 43.6 US mpg
39.8 – 52.3 UK mpg
14.1 – 18.5 km/l
Fuel consumption at very high speed (WLTP) 7.4-6.6 l/100 km
31.8 – 35.6 US mpg
38.2 – 42.8 UK mpg
13.5 – 15.2 km/l
Combined fuel consumption (WLTP) 7.1-6.3 l/100 km
33.1 – 37.3 US mpg
39.8 – 44.8 UK mpg
14.1 – 15.9 km/l
CO2 emissions (WLTP) 143-162 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 11.9 sec
Acceleration 0 – 62 mph 11.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.3 sec
Maximum speed 181 km/h
112.47 mph
Emission standard Euro 6d-ISC-FCM
Weight-to-power ratio 12.9 kg/Hp, 77.7 Hp/tonne
Weight-to-torque ratio 6.7 kg/Nm, 150 Nm/tonne
Engine specs
Power 114 Hp @ 4500-6000 rpm.
Power per litre 76.1 Hp/l
Torque 220 Nm @ 1750-3000 rpm.
162.26 lb.-ft. @ 1750-3000 rpm.
Engine layout Front, Transverse
Engine Model/Code DPBC
Engine displacement 1498 cm3
91.41 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 74.5 mm
2.93 in.
Piston Stroke 85.9 mm
3.38 in.
Compression ratio 12.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil specification Log in to see.Log in to see.
Engine systems Cylinder deactivation system
Particulate filter

Space, Volume and weights
Kerb Weight 1467-1584 kg
3234.18 – 3492.12 lbs.
Max. weight 2300 kg
5070.63 lbs.
Max load 716-833 kg
1578.51 – 1836.45 lbs.
Trunk (boot) space – minimum 1213 l
42.84 cu. ft.
Trunk (boot) space – maximum 2556 l
90.26 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (8%) 1500 kg
3306.93 lbs.
Permitted trailer load with brakes (12%) 1400 kg
3086.47 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4515 mm
177.76 in.
Width 1855 mm
73.03 in.
Width including mirrors 2100 mm
82.68 in.
Height 1833 mm
72.17 in.
Wheelbase 2755 mm
108.46 in.
Front track 1565-1572 mm
61.61 – 61.89 in.
Rear (Back) track 1603-1606 mm
63.11 – 63.23 in.
Ride height (ground clearance) 144 mm
5.67 in.
Minimum turning circle (turning diameter) 11.4 m
37.4 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Rigid axle suspension, Trailing arm, Coil spring
Front brakes Ventilated discs, 288-312 mm
Rear brakes Disc, 272-300 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/65 R15; 205/60 R16
Wheel rims size 6.0J x 15; 6.5J x 16
