Specifications: Ford Tourneo Custom II L2 2.0 EcoBlue (136 Hp) Automatic 2023, 2024, 2025

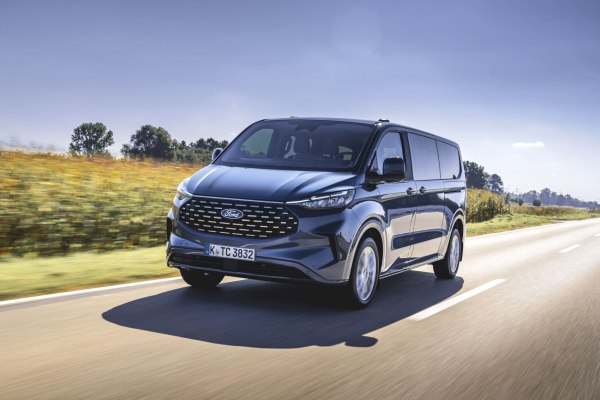

2024 Ford Tourneo Custom II L2 - Photo 1

Ford Tourneo Custom II L2 2.0 EcoBlue (136 Hp) Automatic – Full specifications
General information
Brand Ford
Model Tourneo Custom
Generation Tourneo Custom II L2
Modification (Engine) 2.0 EcoBlue (136 Hp) Automatic
Start of production July, 2023 year
Powertrain Architecture Internal Combustion engine
Body type Van
Seats 8-9
Doors 4-5
Performance specs
Fuel consumption at Low speed (WLTP) 10.6-11.2 l/100 km
22.2 – 21 US mpg
26.6 – 25.2 UK mpg
9.4 – 8.9 km/l
Fuel consumption at Medium speed (WLTP) 7.6-8.2 l/100 km
30.9 – 28.7 US mpg
37.2 – 34.4 UK mpg
13.2 – 12.2 km/l
Fuel consumption at high speed (WLTP) 6.7-7.3 l/100 km
35.1 – 32.2 US mpg
42.2 – 38.7 UK mpg
14.9 – 13.7 km/l
Fuel consumption at very high speed (WLTP) 8.4-9 l/100 km
28 – 26.1 US mpg
33.6 – 31.4 UK mpg
11.9 – 11.1 km/l
Combined fuel consumption (WLTP) 8-8.6 l/100 km
29.4 – 27.4 US mpg
35.3 – 32.8 UK mpg
12.5 – 11.6 km/l
CO2 emissions (WLTP) 210-225 g/km
Fuel Type Diesel
Emission standard Euro 6.2
Weight-to-power ratio 16.7 kg/Hp, 59.8 Hp/tonne
Weight-to-torque ratio 6.3 kg/Nm, 158.3 Nm/tonne
Engine specs
Power 136 Hp
Power per litre 68.1 Hp/l
Torque 360 Nm
265.52 lb.-ft.
Engine layout Front, Transverse
Engine Model/Code BJFA
Engine displacement 1996 cm3
121.8 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 84.01 mm
3.31 in.
Piston Stroke 90.03 mm
3.54 in.
Compression ratio 16.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 9.6 l
10.14 US qt | 8.45 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 12.4 l
13.1 US qt | 10.91 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 2274-2302 kg
5013.31 – 5075.04 lbs.
Max. weight 3225 kg
7109.91 lbs.
Max load 923-951 kg
2034.87 – 2096.6 lbs.
Trunk (boot) space – minimum 819 l
28.92 cu. ft.
Trunk (boot) space – maximum 5472 l
193.24 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
AdBlue tank 20 l
5.28 US gal | 4.4 UK gal
Permitted trailer load with brakes (12%) 2500 kg
5511.56 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 5450 mm
214.57 in.
Width 2032 mm
80 in.
Width with mirrors folded 2148 mm
84.57 in.
Width including mirrors 2275 mm
89.57 in.
Height 1963-2031 mm
77.28 – 79.96 in.
Wheelbase 3500 mm
137.8 in.
Front track 1730 mm
68.11 in.
Rear (Back) track 1721 mm
67.76 in.
Front overhang 958 mm
37.72 in.
Rear overhang 992 mm
39.06 in.
Ride height (ground clearance) 140 mm
5.51 in.
Minimum turning circle (turning diameter) 12.8 m
41.99 ft.
Approach angle 17.2°
Departure angle 16.4°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent coil spring, Trailing arm
Front brakes Ventilated discs, 308 mm
Rear brakes Ventilated discs, 304 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/65 R16; 215/60 R17
Wheel rims size 6.5J x 16; 6.5J x 17
