Specifications: Ford Transit Connect I (facelift 2009) Panel Van L1H1 1.8 TDCi (110 Hp) 2009, 2010, 2011

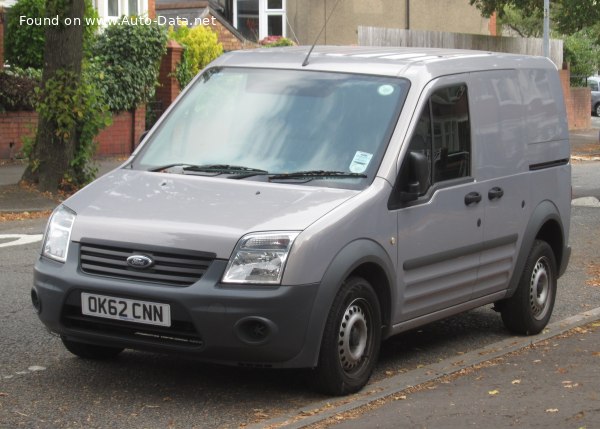

2010 Ford Transit Connect I (facelift 2009) Panel Van L1H1 - Photo 1

Ford Transit Connect I (facelift 2009) Panel Van L1H1 1.8 TDCi (110 Hp) – Full specifications
General information
Brand Ford
Model Transit Connect
Generation Transit Connect I (facelift 2009) Panel Van L1H1
Modification (Engine) 1.8 TDCi (110 Hp)
Start of production 2009 year
End of production September, 2011 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 2
Doors 3-5
Performance specs
Fuel consumption (economy) – urban (NEDC) 7.4 l/100 km
31.8 US mpg
38.2 UK mpg
13.5 km/l
Fuel consumption (economy) – extra urban (NEDC) 5.2 l/100 km
45.2 US mpg
54.3 UK mpg
19.2 km/l
Fuel consumption (economy) – combined (NEDC) 6 l/100 km
39.2 US mpg
47.1 UK mpg
16.7 km/l
CO2 emissions (NEDC) 159 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 14.4 sec
Acceleration 0 – 62 mph 14.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 13.7 sec
Maximum speed 167 km/h
103.77 mph
Emission standard Euro 4
Weight-to-power ratio 12.7 kg/Hp, 78.5 Hp/tonne
Weight-to-torque ratio 5 kg/Nm, 199.7 Nm/tonne
Engine specs
Power 110 Hp @ 3500 rpm.
Power per litre 62.7 Hp/l
Torque 280 Nm @ 1500-3200 rpm.
206.52 lb.-ft. @ 1500-3200 rpm.
Engine layout Front, Transverse
Engine Model/Code Duratorq / RWPA, RWPB, RWPC, RWPD
Engine displacement 1753 cm3
106.97 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 82 mm
3.23 in.
Compression ratio 17.1:1
Number of valves per cylinder 2
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain SOHC
Engine oil capacity 5.6 l
5.92 US qt | 4.93 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7 l
7.4 US qt | 6.16 UK qt

Space, Volume and weights
Kerb Weight 1402-1465 kg
3090.88 – 3229.77 lbs.
Max. weight 2040-2240 kg
4497.43 – 4938.35 lbs.
Max load 638-775 kg
1406.55 – 1708.58 lbs.
Trunk (boot) space – minimum 2800 l
98.88 cu. ft.
Trunk (boot) space – maximum 3400 l
120.07 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4275 mm
168.31 in.
Width 1795 mm
70.67 in.
Width including mirrors 2044 mm
80.47 in.
Height 1815 mm
71.46 in.
Wheelbase 2664 mm
104.88 in.
Front track 1505 mm
59.25 in.
Rear (Back) track 1552 mm
61.1 in.
Front overhang 861 mm
33.9 in.
Rear overhang 749 mm
29.49 in.
Ride height (ground clearance) 166 mm
6.54 in.
Minimum turning circle (turning diameter) 11 m
36.09 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Transverse stabilizer, Leaf spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/65 R15
Wheel rims size 6J x 15
