Specifications: Ford Transit Connect II (facelift 2018) Panel Van L2 1.5 EcoBlue (75 Hp) 2018, 2019, 2020, 2021, 2022, 2023, 2024

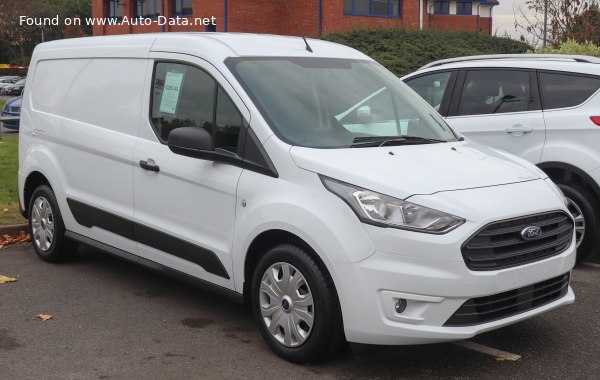

2019 Ford Transit Connect II (facelift 2018) Panel Van L2 - Photo 1

Ford Transit Connect II (facelift 2018) Panel Van L2 1.5 EcoBlue (75 Hp) – Full specifications
General information
Brand Ford
Model Transit Connect
Generation Transit Connect II (facelift 2018) Panel Van L2
Modification (Engine) 1.5 EcoBlue (75 Hp)
Start of production 2018 year
End of production 2024 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 2-3
Doors 4-5
Performance specs
Fuel consumption at Low speed (WLTP) 5.9-6.1 l/100 km
39.9 – 38.6 US mpg
47.9 – 46.3 UK mpg
16.9 – 16.4 km/l
Fuel consumption at high speed (WLTP) 4.9-5 l/100 km
48 – 47 US mpg
57.6 – 56.5 UK mpg
20.4 – 20 km/l
Combined fuel consumption (WLTP) 5.7 l/100 km
41.3 US mpg
49.6 UK mpg
17.5 km/l
CO2 emissions (WLTP) 149 g/km
Fuel consumption (economy) – urban (NEDC) 4.9-5 l/100 km
48 – 47 US mpg
57.6 – 56.5 UK mpg
20.4 – 20 km/l
Fuel consumption (economy) – extra urban (NEDC) 4.3-4.6 l/100 km
54.7 – 51.1 US mpg
65.7 – 61.4 UK mpg
23.3 – 21.7 km/l
Fuel consumption (economy) – combined (NEDC) 4.5-4.7 l/100 km
52.3 – 50 US mpg
62.8 – 60.1 UK mpg
22.2 – 21.3 km/l
CO2 emissions (NEDC) 119-124 g/km
Fuel Type Diesel
Emission standard Euro 6d-TEMP-EVAP-ISC
Weight-to-power ratio 20.6 kg/Hp, 48.6 Hp/tonne
Weight-to-torque ratio 7 kg/Nm, 142.6 Nm/tonne
Engine specs
Power 75 Hp
Power per litre 50.1 Hp/l
Torque 220 Nm
162.26 lb.-ft.
Engine layout Front, Transverse
Engine Model/Code BEGA
Engine displacement 1498 cm3
91.41 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 75 mm
2.95 in.
Piston Stroke 84.8 mm
3.34 in.
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 6 l
6.34 US qt | 5.28 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7 l
7.4 US qt | 6.16 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1543-1596 kg
3401.73 – 3518.58 lbs.
Max. weight 2235-2445 kg
4927.33 – 5390.3 lbs.
Max load 692-849 kg
1525.6 – 1871.72 lbs.
Trunk (boot) space – minimum 3200 l
113.01 cu. ft.
Trunk (boot) space – maximum 4400 l
155.38 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
AdBlue tank 17 l
4.49 US gal | 3.74 UK gal
Permitted trailer load with brakes (12%) 1200 kg
2645.55 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 4825 mm
189.96 in.
Width 1835 mm
72.24 in.
Width with mirrors folded 1967 mm
77.44 in.
Width including mirrors 2137 mm
84.13 in.
Height 1828-1847 mm
71.97 – 72.72 in.
Wheelbase 3062 mm
120.55 in.
Front track 1568 mm
61.73 in.
Rear (Back) track 1582 mm
62.28 in.
Front overhang 885 mm
34.84 in.
Rear overhang 878 mm
34.57 in.
Ride height (ground clearance) 149-155 mm
5.87 – 6.1 in.
Minimum turning circle (turning diameter) 12.5 m
41.01 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Semi-dependent beam with stabilizer lateral stability
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/60 R16
Wheel rims size 6.5J x 16
