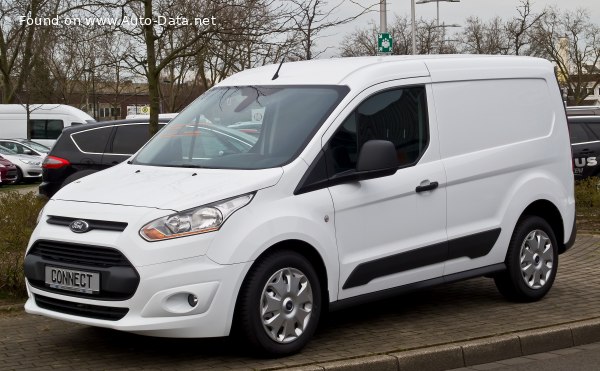

| General information | |
|---|---|
| Brand | Ford |
| Model | Transit Connect |
| Generation | Transit Connect II Panel Van L1 |
| Modification (Engine) | 1.0 EcoBoost (100 Hp) |
| Start of production | 2015 year |
| End of production | 2018 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Minivan |
| Seats | 2-3 |
| Doors | 4-5 |
| Performance specs | |
| Fuel consumption (economy) – urban (NEDC) | 6.4 l/100 km 36.8 US mpg 44.1 UK mpg 15.6 km/l |
| Fuel consumption (economy) – extra urban (NEDC) | 5.1 l/100 km 46.1 US mpg 55.4 UK mpg 19.6 km/l |
| Fuel consumption (economy) – combined (NEDC) | 5.6 l/100 km 42 US mpg 50.4 UK mpg 17.9 km/l |
| CO2 emissions (NEDC) | 129 g/km |
| Fuel Type | Petrol (Gasoline) |
| Emission standard | Euro 6 |
| Weight-to-power ratio | 13.4 kg/Hp, 74.7 Hp/tonne |
| Weight-to-torque ratio | 7.9 kg/Nm, 127 Nm/tonne |
| Engine specs | |
| Power | 100 Hp @ 6000 rpm. |
| Power per litre | 100.1 Hp/l |
| Torque | 170 Nm @ 1400-4000 rpm. 125.39 lb.-ft. @ 1400-4000 rpm. |
| Engine layout | Front, Transverse |
| Engine Model/Code | EcoBoost / M2GA, M2GB |
| Engine displacement | 999 cm3 60.96 cu. in. |
| Number of cylinders | 3 |
| Engine configuration | Inline |
| Cylinder Bore | 71.9 mm 2.83 in. |
| Piston Stroke | 82 mm 3.23 in. |
| Compression ratio | 10:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Direct injection |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 4.1 l 4.33 US qt | 3.61 UK qt |
| Engine oil specification |  Log in to see. |
| Coolant | 5.85 l 6.18 US qt | 5.15 UK qt |
| Engine systems | Start & Stop System |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 1339-1380 kg 2951.99 – 3042.38 lbs. |
| Max. weight | 1960 kg 4321.06 lbs. |
| Max load | 580-621 kg 1278.68 – 1369.07 lbs. |
| Trunk (boot) space – minimum | 2630 l 92.88 cu. ft. |
| Trunk (boot) space – maximum | 3700 l 130.66 cu. ft. |
| Fuel tank capacity | 60 l 15.85 US gal | 13.2 UK gal |
| Permitted trailer load with brakes (12%) | 1200 kg 2645.55 lbs. |
| Permitted trailer load without brakes | 695 kg 1532.21 lbs. |
| Dimensions | |
| Length | 4418 mm 173.94 in. |
| Width | 1835 mm 72.24 in. |
| Width including mirrors | 2137 mm 84.13 in. |
| Height | 1861 mm 73.27 in. |
| Wheelbase | 2662 mm 104.8 in. |
| Front track | 1568 mm 61.73 in. |
| Rear (Back) track | 1584-1585 mm 62.36 – 62.4 in. |
| Front overhang | 878 mm 34.57 in. |
| Rear overhang | 878 mm 34.57 in. |
| Ride height (ground clearance) | 152 mm 5.98 in. |
| Minimum turning circle (turning diameter) | 11.7 m 38.39 ft. |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 6 gears, manual transmission |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Coil spring, Torsion |
| Front brakes | Ventilated discs, 300 mm |
| Rear brakes | Disc, 280 mm |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 205/60 R16 |
| Wheel rims size | 6.5J x 16 |
