Specifications: Jaguar C-X16 3.0 V6 (467 Hp) FHEV Automatic 2011

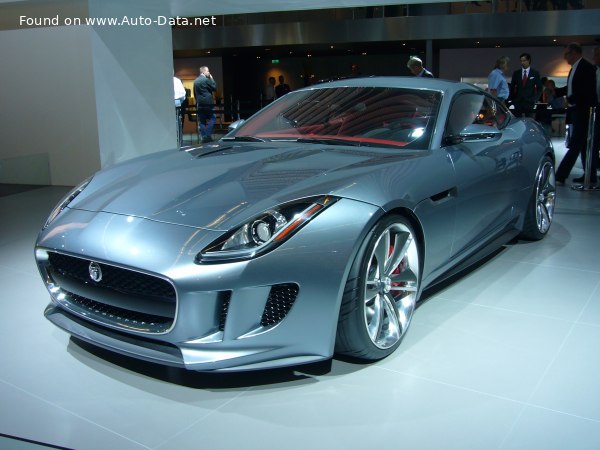

2011 Jaguar C-X16 - Photo 1

Jaguar C-X16 3.0 V6 (467 Hp) FHEV Automatic – Full specifications
General information
Brand Jaguar
Model C-X16
Generation C-X16
Modification (Engine) 3.0 V6 (467 Hp) FHEV Automatic
Start of production 2011 year
End of production 2011 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type Coupe
Seats 2
Doors 2
Performance specs
Fuel consumption (economy) – combined 6.9 l/100 km
34.09 US mpg
40.94 UK mpg
14.49 km/l
CO2 emissions 165 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 4.4 sec
Acceleration 0 – 62 mph 4.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 4.2 sec
Maximum speed 300 km/h
186.41 mph
Weight-to-power ratio 3.4 kg/Hp, 291.9 Hp/tonne
Weight-to-torque ratio 2.3 kg/Nm, 428.1 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 1.6 kWh
Electric motor 1
Electric motor power 95 Hp
Electric motor Torque 235 Nm

173.33 lb.-ft.
Electric motor location Between the combustion engine and the transmission
System power 467 Hp
System torque 685 Nm
505.23 lb.-ft.
Internal combustion engine specs
Power 380 Hp
Power per litre 126.9 Hp/l
Torque 450 Nm
331.9 lb.-ft.
Engine layout Middle, Longitudinal
Engine displacement 2995 cm3
182.77 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 84.5 mm
3.33 in.
Piston Stroke 89 mm
3.5 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Supercharger, Intercooler
Valvetrain DOHC
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1600 kg
3527.4 lbs.
Dimensions
Length 4445 mm
175 in.
Width 2048 mm
80.63 in.
Height 1297 mm
51.06 in.
Wheelbase 2622 mm
103.23 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the rear wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
