Specifications: Jaguar I-Pace EV400 90 kWh (400 Hp) AWD 2018, 2019, 2020, 2021, 2022, 2023

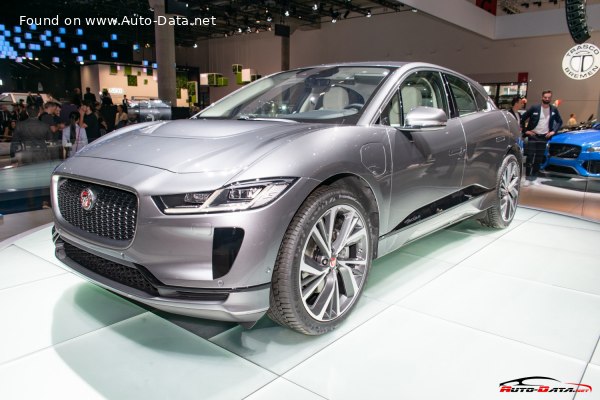

2018 Jaguar I-Pace - Photo 1

Jaguar I-Pace EV400 90 kWh (400 Hp) AWD – Full specifications
General information
Brand Jaguar
Model I-Pace
Generation I-Pace
Modification (Engine) EV400 90 kWh (400 Hp) AWD
Start of production March, 2018 year
End of production January, 2023 year
Powertrain Architecture BEV (Electric Vehicle)
Body type SUV, Crossover
Seats 5
Doors 5
Performance specs
Fuel Type Electricity
Acceleration 0 – 100 km/h 4.8 sec
Acceleration 0 – 62 mph 4.8 sec
Acceleration 0 – 60 mph 4.5 sec
Maximum speed 200 km/h, Electronically limited
124.27 mph
Weight-to-power ratio 5.3 kg/Hp, 187.5 Hp/tonne
Weight-to-torque ratio 3.1 kg/Nm, 326.3 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 90 kWh
Net (usable) battery capacity 84.7 kWh
Battery voltage 389 V
Battery technology Lithium-ion (Li-Ion)
Battery weight 606 kg
1336 lbs.
Battery location Below the floor
All-electric range (WLTP) 407-470 km
252.9 – 292.04 mi
Average Energy consumption (WLTP) 22-25.2 kWh/100 km

35.41 – 40.56 kWh/100 mi
95 – 83 MPGe
4.5 – 4 km/kWh
2.8 – 2.5 mi/kWh
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 200 Hp
Electric motor Torque 348 Nm

256.67 lb.-ft.
Electric motor model/code TZ204XSA
Maximum revolutions of the electric motor 13000 rpm.
Electric motor location Front axle, Transverse
Electric motor type Synchronous
Electric motor 2
Electric motor power 200 Hp
Electric motor Torque 348 Nm

256.67 lb.-ft.
Electric motor model/code TZ204XSA
Maximum revolutions of the electric motor 13000 rpm.
Electric motor location Rear axle, Transverse
Electric motor type Synchronous
System power 400 Hp
System torque 696 Nm
513.34 lb.-ft.

Space, Volume and weights
Kerb Weight 2133 kg
4702.46 lbs.
Max. weight 2670 kg
5886.34 lbs.
Max load 537 kg
1183.88 lbs.
Trunk (boot) space – minimum 505 l
17.83 cu. ft.
Trunk (boot) space – maximum 1163 l
41.07 cu. ft.
Max. roof load 75 kg
165.35 lbs.
Dimensions
Length 4682 mm
184.33 in.
Width with mirrors folded 2011 mm
79.17 in.
Width including mirrors 2139 mm
84.21 in.
Height 1565 mm
61.61 in.
Wheelbase 2990 mm
117.72 in.
Front track 1641-1643 mm
64.61 – 64.69 in.
Rear (Back) track 1660-1662 mm
65.35 – 65.43 in.
Ride height (ground clearance) 174 mm
6.85 in.
Drag coefficient (Cd) 0.29
Minimum turning circle (turning diameter) 12.39 m
40.65 ft.
Approach angle 16°
Departure angle 19°
Ramp-over (brakeover) angle 11.95°
Wading depth 500 mm
19.69 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture One electric motor drives the front wheels, one electric motor drives the rear wheels.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 1 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 350 mm
Rear brakes Ventilated discs, 325 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/65 R18; 245/50 R20
Wheel rims size 7.5J x 18; 8J x 20
