Specifications: Jaguar S-type (CCX) 2.5 i V6 24V (200 Hp) 2001, 2002, 2003, 2004, 2005, 2006, 2007

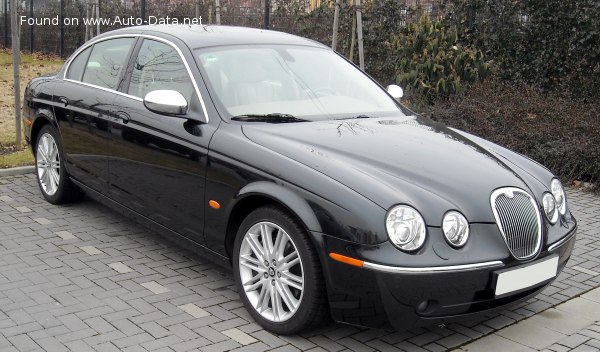

1999 Jaguar S-type (CCX) - Photo 1

Jaguar S-type (CCX) 2.5 i V6 24V (200 Hp) – Full specifications
General information
Brand Jaguar
Model S-type
Generation S-type (CCX)
Modification (Engine) 2.5 i V6 24V (200 Hp)
Start of production 2001 year
End of production 2007 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 13.3 l/100 km
17.69 US mpg
21.24 UK mpg
7.52 km/l
Fuel consumption (economy) – extra urban 7.3 l/100 km
32.22 US mpg
38.7 UK mpg
13.7 km/l
Fuel consumption (economy) – combined 9.5 l/100 km
24.76 US mpg
29.73 UK mpg
10.53 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.6 sec
Acceleration 0 – 62 mph 8.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.2 sec
Maximum speed 228 km/h
141.67 mph
Weight-to-power ratio 8.1 kg/Hp, 123.5 Hp/tonne
Weight-to-torque ratio 6.6 kg/Nm, 151.2 Nm/tonne
Engine specs
Power 200 Hp @ 6800 rpm.
Power per litre 80.1 Hp/l
Torque 245 Nm @ 4000 rpm.
180.7 lb.-ft. @ 4000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code AJ25
Engine displacement 2497 cm3
152.38 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 81.65 mm
3.21 in.
Piston Stroke 79.5 mm
3.13 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 6.9 l
7.29 US qt | 6.07 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10.4 l
10.99 US qt | 9.15 UK qt

Space, Volume and weights
Kerb Weight 1620 kg
3571.49 lbs.
Max. weight 2125 kg
4684.82 lbs.
Max load 505 kg
1113.33 lbs.
Trunk (boot) space – minimum 370 l
13.07 cu. ft.
Trunk (boot) space – maximum 810 l
28.6 cu. ft.
Fuel tank capacity 68 l
17.96 US gal | 14.96 UK gal
Dimensions
Length 4861 mm
191.38 in.
Width 1819 mm
71.61 in.
Height 1441 mm
56.73 in.
Wheelbase 2909 mm
114.53 in.
Front track 1537 mm
60.51 in.
Rear (Back) track 1544 mm
60.79 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Double wishbone
Rear suspension Double wishbone
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/60 R16
