Specifications: Jaguar XE (X760) 2.0 (240 Hp) Automatic 2015, 2016, 2017

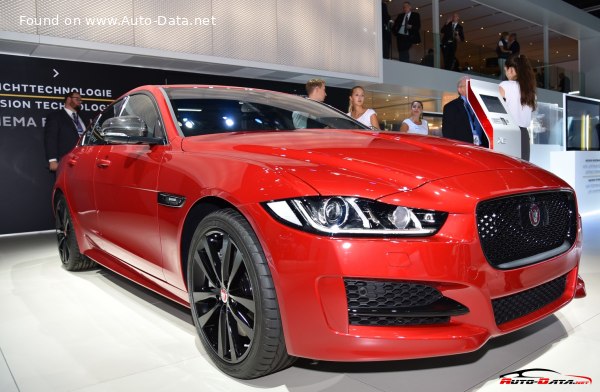

2015 Jaguar XE (X760) - Photo 1

Jaguar XE (X760) 2.0 (240 Hp) Automatic – Full specifications
General information
Brand Jaguar
Model XE
Generation XE (X760)
Modification (Engine) 2.0 (240 Hp) Automatic
Start of production 2015 year
End of production 2017 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 10.2 l/100 km
23.06 US mpg
27.69 UK mpg
9.8 km/l
Fuel consumption (economy) – extra urban 6 l/100 km
39.2 US mpg
47.08 UK mpg
16.67 km/l
Fuel consumption (economy) – combined 7.5 l/100 km
31.36 US mpg
37.66 UK mpg
13.33 km/l
CO2 emissions 179 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 6.9 sec
Acceleration 0 – 62 mph 6.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.6 sec
Maximum speed 250 km/h
155.34 mph
Weight-to-power ratio 6.4 kg/Hp, 156.9 Hp/tonne
Weight-to-torque ratio 4.5 kg/Nm, 222.2 Nm/tonne
Engine specs
Power 240 Hp @ 5500 rpm.
Power per litre 120.1 Hp/l
Torque 340 Nm @ 1750-4000 rpm.
250.77 lb.-ft. @ 1750-4000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EcoBoost / 204PT
Engine displacement 1999 cm3
121.99 cu. in.
Number of cylinders 4
Engine configuration Inline
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 5.4 l
5.71 US qt | 4.75 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.5 l
8.98 US qt | 7.48 UK qt

Space, Volume and weights
Kerb Weight 1530 kg
3373.07 lbs.
Max. weight 2120 kg
4673.8 lbs.
Max load 590 kg
1300.73 lbs.
Trunk (boot) space – minimum 455 l
16.07 cu. ft.
Fuel tank capacity 63 l
16.64 US gal | 13.86 UK gal
Dimensions
Length 4672 mm
183.94 in.
Width 1850 mm
72.83 in.
Width including mirrors 2075 mm
81.69 in.
Height 1416 mm
55.75 in.
Wheelbase 2835 mm
111.61 in.
Minimum turning circle (turning diameter) 11.66 m
38.25 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
