Specifications: Jaguar XE (X760, facelift 2019) P250 (250 Hp) AWD Automatic 2019, 2020

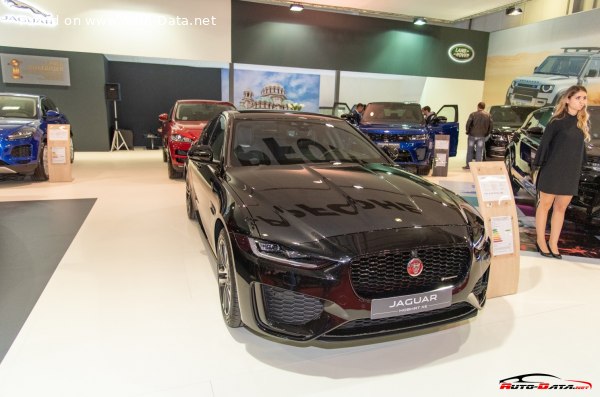

2019 Jaguar XE (X760, facelift 2019) - Photo 1

Jaguar XE (X760, facelift 2019) P250 (250 Hp) AWD Automatic – Full specifications
General information
Brand Jaguar
Model XE
Generation XE (X760, facelift 2019)
Modification (Engine) P250 (250 Hp) AWD Automatic
Start of production February, 2019 year
End of production October, 2020 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 6.5 sec
Acceleration 0 – 62 mph 6.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.2 sec
Maximum speed 250 km/h
155.34 mph
Emission standard Euro 6
Weight-to-power ratio 6.4 kg/Hp, 157.3 Hp/tonne
Weight-to-torque ratio 4.4 kg/Nm, 229.7 Nm/tonne
Engine specs
Power 250 Hp @ 5500 rpm.
Power per litre 125.2 Hp/l
Torque 365 Nm @ 1300-4500 rpm.
269.21 lb.-ft. @ 1300-4500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code Ingenium / PT204
Engine displacement 1997 cm3
121.86 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 92.3 mm
3.63 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 7 l
7.4 US qt | 6.16 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 11.2 l
11.83 US qt | 9.85 UK qt

Space, Volume and weights
Kerb Weight 1589 kg
3503.15 lbs.
Trunk (boot) space – minimum 410 l
14.48 cu. ft.
Fuel tank capacity 63 l
16.64 US gal | 13.86 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 1800 kg
3968.32 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4678 mm
184.17 in.
Width with mirrors folded 1967 mm
77.44 in.
Width including mirrors 2075 mm
81.69 in.
Height 1425 mm
56.1 in.
Wheelbase 2835 mm
111.61 in.
Front track 1602 mm
63.07 in.
Rear (Back) track 1583 mm
62.32 in.
Front overhang 841 mm
33.11 in.
Rear overhang 1002 mm
39.45 in.
Ride height (ground clearance) 125 mm
4.92 in.
Drag coefficient (Cd) 0.30
Minimum turning circle (turning diameter) 11.3 m
37.07 ft.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Independent coil spring
Front brakes Ventilated discs, 325 mm
Rear brakes Ventilated discs, 325 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Wheel rims size 18; 19; 20
