Specifications: Jaguar XE (X760, facelift 2020) 2.0i (300 Hp) AWD Automatic 2020, 2021, 2022, 2023, 2024

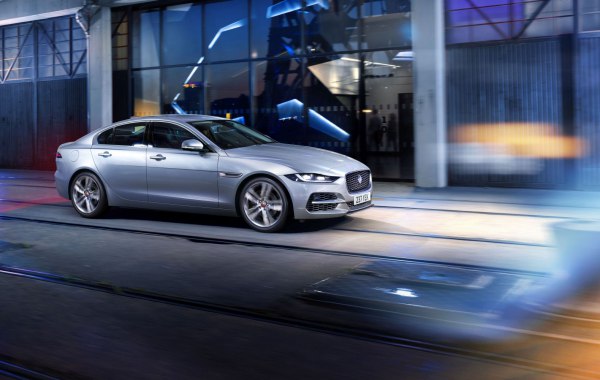

2021 Jaguar XE (X760, facelift 2020) - Photo 1

Jaguar XE (X760, facelift 2020) 2.0i (300 Hp) AWD Automatic – Full specifications
General information
Brand Jaguar
Model XE
Generation XE (X760, facelift 2020)
Modification (Engine) 2.0i (300 Hp) AWD Automatic
Start of production October, 2020 year
End of production 2024 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Combined fuel consumption (WLTP) 8.7-9.5 l/100 km
27.04 – 24.76 US mpg
32.47 – 29.73 UK mpg
11.49 – 10.53 km/l
CO2 emissions (WLTP) 196-215 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 5.9 sec
Acceleration 0 – 62 mph 5.9 sec
Acceleration 0 – 60 mph 5.6 sec
Maximum speed 250 km/h
155.34 mph
Emission standard Euro 6d
Weight-to-power ratio 5.4 kg/Hp, 185.8 Hp/tonne
Weight-to-torque ratio 4 kg/Nm, 247.7 Nm/tonne
Engine specs
Power 300 Hp @ 5500 rpm.
Power per litre 150.2 Hp/l
Torque 400 Nm @ 1500-4500 rpm.
295.02 lb.-ft. @ 1500-4500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code Ingenium / PT204
Engine displacement 1997 cm3
121.86 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 92.29 mm
3.63 in.
Compression ratio 9.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 7 l
7.4 US qt | 6.16 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 11.2 l
11.83 US qt | 9.85 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1615 kg
3560.47 lbs.
Trunk (boot) space – minimum 394 l
13.91 cu. ft.
Trunk (boot) space – maximum 1275 l
45.03 cu. ft.
Fuel tank capacity 62 l
16.38 US gal | 13.64 UK gal
Permitted trailer load with brakes (12%) 1800 kg
3968.32 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 4678 mm
184.17 in.
Width with mirrors folded 1967 mm
77.44 in.
Width including mirrors 2075 mm
81.69 in.
Height 1410 mm
55.51 in.
Wheelbase 2835 mm
111.61 in.
Front track 1608 mm
63.31 in.
Rear (Back) track 1606 mm
63.23 in.
Front overhang 841 mm
33.11 in.
Rear overhang 1002 mm
39.45 in.
Drag coefficient (Cd) 0.30
Minimum turning circle (turning diameter) 11.23 m
36.84 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission ZF
Front suspension Double wishbone
Rear suspension Independent coil spring
Front brakes Ventilated discs, 350 mm
Rear brakes Ventilated discs, 325 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
