Specifications: Jaguar XF (X250) R 5.0 V8 (510 Hp) Automatic 2009, 2010, 2011

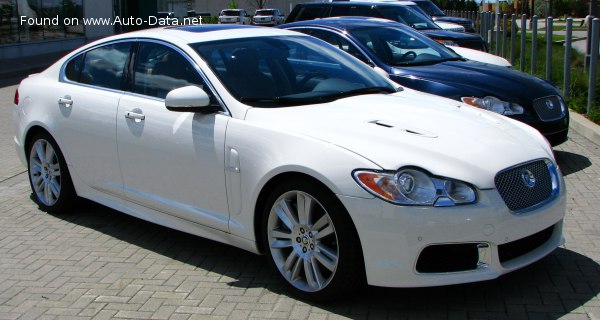

2008 Jaguar XF (X250) - Photo 1

Jaguar XF (X250) R 5.0 V8 (510 Hp) Automatic – Full specifications
General information
Brand Jaguar
Model XF
Generation XF (X250)
Modification (Engine) R 5.0 V8 (510 Hp) Automatic
Start of production 2009 year
End of production 2011 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban (NEDC) 18.7 l/100 km
12.58 US mpg
15.11 UK mpg
5.35 km/l
Fuel consumption (economy) – extra urban (NEDC) 8.7 l/100 km
27.04 US mpg
32.47 UK mpg
11.49 km/l
Fuel consumption (economy) – combined (NEDC) 12.5 l/100 km
18.82 US mpg
22.6 UK mpg
8 km/l
CO2 emissions (NEDC) 292 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 4.9 sec
Acceleration 0 – 62 mph 4.9 sec
Acceleration 0 – 60 mph 4.7 sec
Maximum speed 250 km/h, Electronically limited
155.34 mph
Emission standard Euro 5
Weight-to-power ratio 3.7 kg/Hp, 269.7 Hp/tonne
Weight-to-torque ratio 3 kg/Nm, 330.5 Nm/tonne
Engine specs
Power 510 Hp @ 6000-6500 rpm.
Power per litre 102 Hp/l
Torque 625 Nm @ 2500-5000 rpm.
460.98 lb.-ft. @ 2500-5000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code AJ133S, 508PS
Engine displacement 5000 cm3
305.12 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 92.5 mm
3.64 in.
Piston Stroke 93 mm
3.66 in.
Compression ratio 9.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Supercharger, Intercooler
Valvetrain DOHC
Engine oil capacity 7.25 l
7.66 US qt | 6.38 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 12.3 l
13 US qt | 10.82 UK qt

Space, Volume and weights
Kerb Weight 1891 kg
4168.94 lbs.
Max. weight 2330 kg
5136.77 lbs.
Max load 439 kg
967.83 lbs.
Trunk (boot) space – minimum 500 l
17.66 cu. ft.
Trunk (boot) space – maximum 923 l
32.6 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Permitted trailer load with brakes (12%) 1850 kg
4078.55 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4961 mm
195.31 in.
Width 1877 mm
73.9 in.
Width including mirrors 2053 mm
80.83 in.
Height 1460 mm
57.48 in.
Wheelbase 2909 mm
114.53 in.
Front track 1559 mm
61.38 in.
Rear (Back) track 1571 mm
61.85 in.
Drag coefficient (Cd) 0.29
Minimum turning circle (turning diameter) 11.48 m
37.66 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size Front wheel tires: 255/35 R20
Rear wheel tires: 285/30 R20
Wheel rims size Front wheel rims: 8.5J x 20
Rear wheel rims: 9.5J x 20
