Specifications: Jaguar XJ Long (X351) 3.0 V6 Supercharged (340 Hp) Automatic 2012, 2013, 2014, 2015

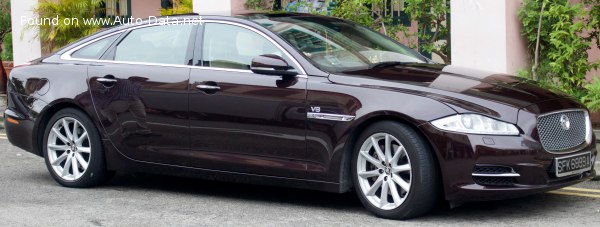

2010 Jaguar XJ Long (X351) - Photo 1

Jaguar XJ Long (X351) 3.0 V6 Supercharged (340 Hp) Automatic – Full specifications
General information
Brand Jaguar
Model XJ
Generation XJ Long (X351)
Modification (Engine) 3.0 V6 Supercharged (340 Hp) Automatic
Start of production 2012 year
End of production 2015 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban (NEDC) 13.5 l/100 km
17.42 US mpg
20.92 UK mpg
7.41 km/l
Fuel consumption (economy) – extra urban (NEDC) 7.4 l/100 km
31.79 US mpg
38.17 UK mpg
13.51 km/l
Fuel consumption (economy) – combined (NEDC) 9.6 l/100 km
24.5 US mpg
29.43 UK mpg
10.42 km/l
CO2 emissions (NEDC) 224 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 5.9 sec
Acceleration 0 – 62 mph 5.9 sec
Acceleration 0 – 60 mph 5.7 sec
Maximum speed 250 km/h, Electronically limited
155.34 mph
Emission standard Euro 5
Weight-to-power ratio 5.2 kg/Hp, 193.1 Hp/tonne
Weight-to-torque ratio 3.9 kg/Nm, 255.5 Nm/tonne
Engine specs
Power 340 Hp @ 6500 rpm.
Power per litre 113.5 Hp/l
Torque 450 Nm @ 3500-5000 rpm.
331.9 lb.-ft. @ 3500-5000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 306PS
Engine displacement 2995 cm3
182.77 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 84.5 mm
3.33 in.
Piston Stroke 89 mm
3.5 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Supercharger, Intercooler
Valvetrain DOHC
Engine oil capacity 7.25 l
7.66 US qt | 6.38 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.6 l
9.09 US qt | 7.57 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1761 kg
3882.34 lbs.
Max. weight 2400 kg
5291.09 lbs.
Max load 639 kg
1408.75 lbs.
Trunk (boot) space – minimum 520 l
18.36 cu. ft.
Fuel tank capacity 82 l
21.66 US gal | 18.04 UK gal
Dimensions
Length 5252 mm
206.77 in.
Width 1899 mm
74.76 in.
Width with mirrors folded 1950 mm
76.77 in.
Width including mirrors 2105 mm
82.87 in.
Height 1457 mm
57.36 in.
Wheelbase 3157 mm
124.29 in.
Front track 1626 mm
64.02 in.
Rear (Back) track 1604 mm
63.15 in.
Minimum turning circle (turning diameter) 12.3 m
40.35 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Rear suspension Independent multi-link suspension, Air suspension, Transverse stabilizer
Front brakes Ventilated discs, 355 mm
Rear brakes Ventilated discs, 326 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size Front wheel tires: 245/45 R19; 245/40 R20
Rear wheel tires: 275/40 R19; 275/35 R20
Wheel rims size Front wheel rims: 9J x 19; 9J x 20
Rear wheel rims: 10J x 19; 10J x 20
