Specifications: Jaguar XJ (X351) 3.0d V6 (275 Hp) Automatic 6-speed 2009, 2010, 2011, 2012

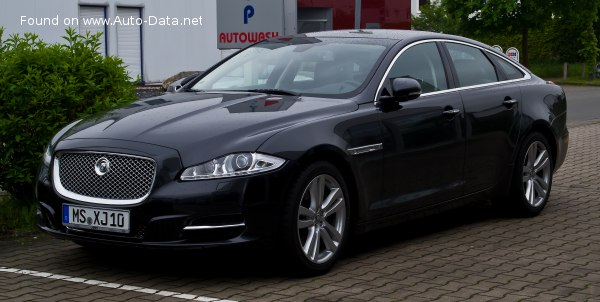

2010 Jaguar XJ (X351) - Photo 1

Jaguar XJ (X351) 3.0d V6 (275 Hp) Automatic 6-speed – Full specifications
General information
Brand Jaguar
Model XJ
Generation XJ (X351)
Modification (Engine) 3.0d V6 (275 Hp) Automatic 6-speed
Start of production 2009 year
End of production 2012 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban (NEDC) 9.6 l/100 km
24.5 US mpg
29.43 UK mpg
10.42 km/l
Fuel consumption (economy) – extra urban (NEDC) 5.6 l/100 km
42 US mpg
50.44 UK mpg
17.86 km/l
Fuel consumption (economy) – combined (NEDC) 7 l/100 km
33.6 US mpg
40.35 UK mpg
14.29 km/l
CO2 emissions (NEDC) 184 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 6.4 sec
Acceleration 0 – 62 mph 6.4 sec
Acceleration 0 – 60 mph 6 sec
Maximum speed 250 km/h, Electronically limited
155.34 mph
Emission standard Euro 5
Weight-to-power ratio 6.5 kg/Hp, 153.1 Hp/tonne
Weight-to-torque ratio 3 kg/Nm, 334.1 Nm/tonne
Engine specs
Power 275 Hp @ 4000 rpm.
Power per litre 91.9 Hp/l
Torque 600 Nm @ 2000 rpm.
442.54 lb.-ft. @ 2000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 306DT
Engine displacement 2993 cm3
182.64 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 16:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration BiTurbo, Intercooler
Valvetrain DOHC
Engine oil capacity 6.6 l
6.97 US qt | 5.81 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 12.3 l
13 US qt | 10.82 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1796 kg
3959.5 lbs.
Max. weight 2365 kg
5213.93 lbs.
Max load 569 kg
1254.43 lbs.
Trunk (boot) space – minimum 520 l
18.36 cu. ft.
Fuel tank capacity 82 l
21.66 US gal | 18.04 UK gal
Dimensions
Length 5127 mm
201.85 in.
Width 1894 mm
74.57 in.
Width with mirrors folded 1950 mm
76.77 in.
Width including mirrors 2105 mm
82.87 in.
Height 1457 mm
57.36 in.
Wheelbase 3032 mm
119.37 in.
Front track 1626 mm
64.02 in.
Rear (Back) track 1604 mm
63.15 in.
Minimum turning circle (turning diameter) 11.9 m
39.04 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Rear suspension Independent multi-link suspension, Air suspension, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size Front wheel tires: 245/50 R18; 245/45 R19
Rear wheel tires: 275/45 R18; 275/40 R19
Wheel rims size Front wheel rims: 8J x 18; 9J x 19
Rear wheel rims: 9J x 18; 10J x 19
