Specifications: Jaguar XJ (X358) R 4.2 V8 (395 Hp) Automatic 2007, 2008, 2009

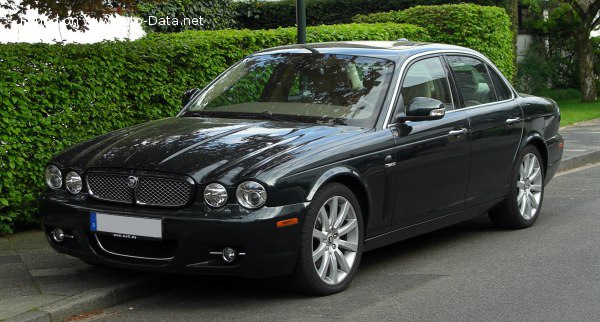

2008 Jaguar XJ (X358) - Photo 1

Jaguar XJ (X358) R 4.2 V8 (395 Hp) Automatic – Full specifications
General information
Brand Jaguar
Model XJ
Generation XJ (X358)
Modification (Engine) R 4.2 V8 (395 Hp) Automatic
Start of production 2007 year
End of production 2009 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban (NEDC) 17.9 l/100 km
13.14 US mpg
15.78 UK mpg
5.59 km/l
Fuel consumption (economy) – extra urban (NEDC) 8.7 l/100 km
27.04 US mpg
32.47 UK mpg
11.49 km/l
Fuel consumption (economy) – combined (NEDC) 12.1 l/100 km
19.44 US mpg
23.35 UK mpg
8.26 km/l
CO2 emissions (NEDC) 289 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 5.3 sec
Acceleration 0 – 62 mph 5.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 5 sec
Maximum speed 250 km/h, Electronically limited
155.34 mph
Emission standard Euro 4
Weight-to-power ratio 4.2 kg/Hp, 239 Hp/tonne
Weight-to-torque ratio 3.1 kg/Nm, 327.3 Nm/tonne
Engine specs
Power 395 Hp @ 6100 rpm.
Power per litre 94.1 Hp/l
Torque 541 Nm @ 3500 rpm.
399.02 lb.-ft. @ 3500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code AJ34S
Engine displacement 4196 cm3
256.06 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 90.3 mm
3.56 in.
Compression ratio 9.1:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Supercharger, Intercooler
Valvetrain DOHC
Engine oil capacity 6 l
6.34 US qt | 5.28 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 12.35 l
13.05 US qt | 10.87 UK qt

Space, Volume and weights
Kerb Weight 1653 kg
3644.24 lbs.
Max. weight 2263 kg
4989.06 lbs.
Max load 610 kg
1344.82 lbs.
Trunk (boot) space – minimum 470 l
16.6 cu. ft.
Fuel tank capacity 85 l
22.45 US gal | 18.7 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 1900 kg
4188.78 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 5091 mm
200.43 in.
Width 1860 mm
73.23 in.
Width with mirrors folded 1898 mm
74.72 in.
Width including mirrors 2104 mm
82.83 in.
Height 1462 mm
57.56 in.
Wheelbase 3034 mm
119.45 in.
Front track 1556 mm
61.26 in.
Rear (Back) track 1546 mm
60.87 in.
Drag coefficient (Cd) 0.32
Minimum turning circle (turning diameter) 11.7 m
38.39 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Double wishbone, Transverse stabilizer
Rear suspension Double wishbone, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 255/35 ZR20
Wheel rims size 9J x 20
