Specifications: Jaguar XJ220 3.5 BiTurbo V6 (542 Hp) 1992, 1993, 1994

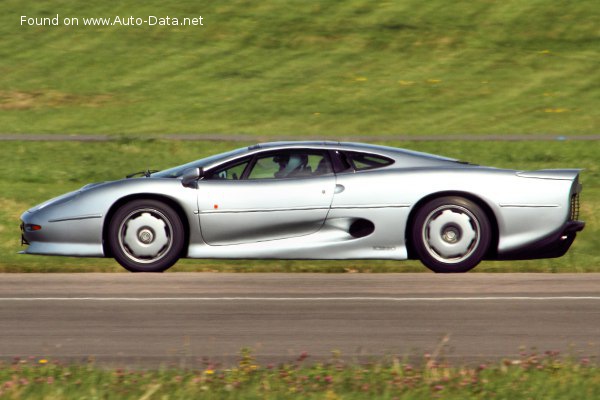

1993 Jaguar XJ220 - Photo 1

Jaguar XJ220 3.5 BiTurbo V6 (542 Hp) – Full specifications
General information
Brand Jaguar
Model XJ220
Generation XJ220
Modification (Engine) 3.5 BiTurbo V6 (542 Hp)
Start of production 1992 year
End of production 1994 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 2
Doors 2
Performance specs
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 3.8 sec
Acceleration 0 – 62 mph 3.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 3.6 sec
Maximum speed 342 km/h
212.51 mph
Weight-to-power ratio 2.5 kg/Hp, 401.5 Hp/tonne
Weight-to-torque ratio 2.1 kg/Nm, 474.1 Nm/tonne
Engine specs
Power 542 Hp @ 7200 rpm.
Power per litre 154.9 Hp/l
Torque 640 Nm @ 4500 rpm.
472.04 lb.-ft. @ 4500 rpm.
Engine layout Middle, Longitudinal
Engine displacement 3498 cm3
213.46 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 94 mm
3.7 in.
Piston Stroke 84 mm
3.31 in.
Compression ratio 8.3:1
Number of valves per cylinder 4
Engine aspiration BiTurbo, Intercooler

Space, Volume and weights
Kerb Weight 1350 kg
2976.24 lbs.
Dimensions
Length 4930 mm
194.09 in.
Width 2000 mm
78.74 in.
Width including mirrors 2220 mm
87.4 in.
Height 1150 mm
45.28 in.
Wheelbase 2640 mm
103.94 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 330 mm
Rear brakes Ventilated discs, 300 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size Front wheel tires: 255/45 ZR17
Rear wheel tires: 345/35 ZR18
Wheel rims size Front wheel rims: 9J x 17
Rear wheel rims: 14J x 18
