Specifications: Jaguar XJSc Convertible 6.0 (318 Hp) 1990, 1991, 1992, 1993, 1994

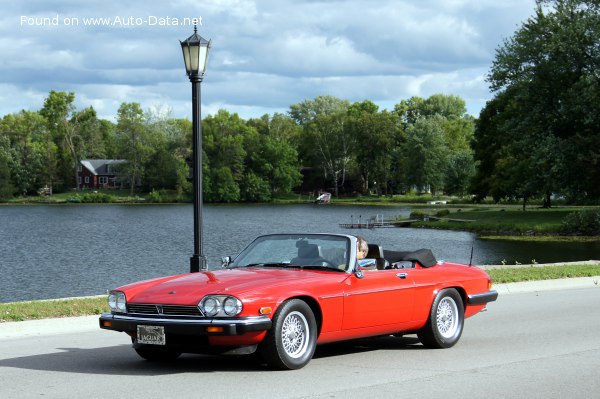

1983 Jaguar XJSc Convertible - Photo 1

Jaguar XJSc Convertible 6.0 (318 Hp) – Full specifications
General information
Brand Jaguar
Model XJS
Generation XJSc Convertible
Modification (Engine) 6.0 (318 Hp)
Start of production 1990 year
End of production 1994 year
Powertrain Architecture Internal Combustion engine
Body type Cabriolet
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban 21.9 l/100 km
10.74 US mpg
12.9 UK mpg
4.57 km/l
Fuel consumption (economy) – extra urban 10.6 l/100 km
22.19 US mpg
26.65 UK mpg
9.43 km/l
Fuel consumption (economy) – combined 13 l/100 km
18.09 US mpg
21.73 UK mpg
7.69 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7.4 sec
Acceleration 0 – 62 mph 7.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7 sec
Maximum speed 250 km/h
155.34 mph
Weight-to-power ratio 6 kg/Hp, 165.6 Hp/tonne
Weight-to-torque ratio 4.1 kg/Nm, 241.1 Nm/tonne
Engine specs
Power 318 Hp @ 5400 rpm.
Power per litre 53.1 Hp/l
Torque 463 Nm @ 3750 rpm.
341.49 lb.-ft. @ 3750 rpm.
Engine layout Front, Longitudinal
Engine displacement 5994 cm3
365.78 cu. in.
Number of cylinders 12
Engine configuration V-engine
Cylinder Bore 90 mm
3.54 in.
Piston Stroke 78.5 mm
3.09 in.
Compression ratio 11:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine

Space, Volume and weights
Kerb Weight 1920 kg
4232.88 lbs.
Max. weight 2130 kg
4695.85 lbs.
Max load 210 kg
462.97 lbs.
Trunk (boot) space – minimum 407 l
14.37 cu. ft.
Fuel tank capacity 89 l
23.51 US gal | 19.58 UK gal
Dimensions
Length 4820 mm
189.76 in.
Width 1793 mm
70.59 in.
Height 1279 mm
50.35 in.
Wheelbase 2588 mm
101.89 in.
Front track 1489 mm
58.62 in.
Rear (Back) track 1504 mm
59.21 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Double wishbone
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Power steering Hydraulic Steering
Tires size 230/65 ZR16
