Specifications: Jaguar XK Convertible (X150, facelift 2011) R 5.0 V8 (510 Hp) Automatic 2011, 2012, 2013, 2014

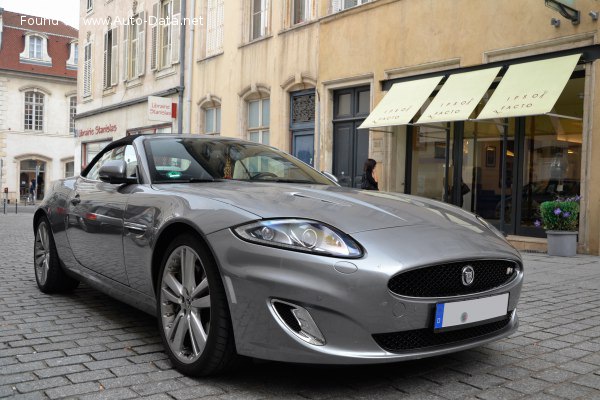

2012 Jaguar XK Convertible (X150, facelift 2011) - Photo 1

Jaguar XK Convertible (X150, facelift 2011) R 5.0 V8 (510 Hp) Automatic – Full specifications
General information
Brand Jaguar
Model XK
Generation XK Convertible (X150, facelift 2011)
Modification (Engine) R 5.0 V8 (510 Hp) Automatic
Start of production 2011 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body type Cabriolet
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban (NEDC) 18.9 l/100 km
12.45 US mpg
14.95 UK mpg
5.29 km/l
Fuel consumption (economy) – extra urban (NEDC) 8.6 l/100 km
27.35 US mpg
32.85 UK mpg
11.63 km/l
Fuel consumption (economy) – combined (NEDC) 12.3 l/100 km
19.12 US mpg
22.97 UK mpg
8.13 km/l
CO2 emissions (NEDC) 292 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 4.8 sec
Acceleration 0 – 62 mph 4.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 4.6 sec
Maximum speed 250 km/h, Electronically limited
155.34 mph
Emission standard Euro 5
Weight-to-power ratio 3.5 kg/Hp, 283.3 Hp/tonne
Weight-to-torque ratio 2.9 kg/Nm, 347.2 Nm/tonne
Engine specs
Power 510 Hp @ 6000-6500 rpm.
Power per litre 102 Hp/l
Torque 625 Nm @ 2500-5500 rpm.
460.98 lb.-ft. @ 2500-5500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code AJ133
Engine displacement 5000 cm3
305.12 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 92.5 mm
3.64 in.
Piston Stroke 93 mm
3.66 in.
Compression ratio 9.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Supercharger, Intercooler
Valvetrain DOHC
Engine oil capacity 7.25 l
7.66 US qt | 6.38 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10 l
10.57 US qt | 8.8 UK qt

Space, Volume and weights
Kerb Weight 1800 kg
3968.32 lbs.
Max. weight 2185 kg
4817.1 lbs.
Max load 385 kg
848.78 lbs.
Trunk (boot) space – minimum 200 l
7.06 cu. ft.
Trunk (boot) space – maximum 313 l
11.05 cu. ft.
Fuel tank capacity 70.6 l
18.65 US gal | 15.53 UK gal
Dimensions
Length 4794 mm
188.74 in.
Width with mirrors folded 1892 mm
74.49 in.
Width including mirrors 2028 mm
79.84 in.
Height 1329 mm
52.32 in.
Wheelbase 2752 mm
108.35 in.
Ride height (ground clearance) 100 mm
3.94 in.
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Double wishbone, Transverse stabilizer
Rear suspension Double wishbone, Transverse stabilizer
Front brakes Ventilated discs, 380 mm
Rear brakes Ventilated discs, 376 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size Front wheel tires: 245/40 R19; 255/35 R20
Rear wheel tires: 275/35 R19; 285/30 R20
Wheel rims size Front wheel rims: 8.5J x 19; 8.5J x 20; 9J x 20
Rear wheel rims: 9.5J x 19; 9.5J x 20; 10J x 20
