Specifications: Jaguar XK Coupe (X150) R 4.2 V8 (416 Hp) Automatic 2006, 2007, 2008, 2009

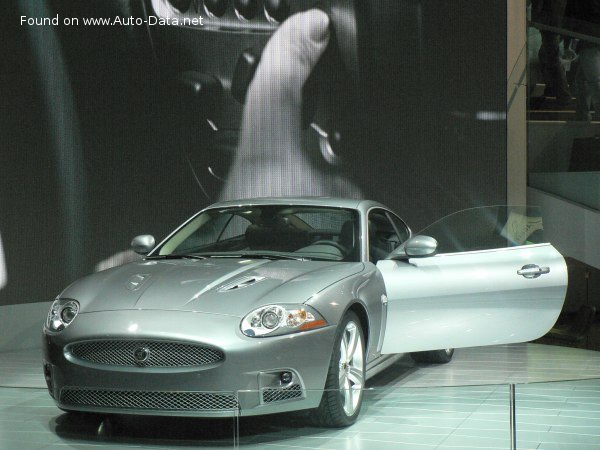

2007 Jaguar XK Coupe (X150) - Photo 1

Jaguar XK Coupe (X150) R 4.2 V8 (416 Hp) Automatic – Full specifications
General information
Brand Jaguar
Model XK
Generation XK Coupe (X150)
Modification (Engine) R 4.2 V8 (416 Hp) Automatic
Start of production 2006 year
End of production 2009 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban (NEDC) 19.1 l/100 km
12.31 US mpg
14.79 UK mpg
5.24 km/l
Fuel consumption (economy) – extra urban (NEDC) 8.6 l/100 km
27.35 US mpg
32.85 UK mpg
11.63 km/l
Fuel consumption (economy) – combined (NEDC) 12.3 l/100 km
19.12 US mpg
22.97 UK mpg
8.13 km/l
CO2 emissions (NEDC) 294 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 5.2 sec
Acceleration 0 – 62 mph 5.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 4.9 sec
Maximum speed 250 km/h, Electronically limited
155.34 mph
Emission standard Euro 4
Weight-to-power ratio 4.1 kg/Hp, 245.4 Hp/tonne
Weight-to-torque ratio 3 kg/Nm, 330.4 Nm/tonne
Engine specs
Power 416 Hp @ 6250 rpm.
Power per litre 99.1 Hp/l
Torque 560 Nm @ 4000 rpm.
413.03 lb.-ft. @ 4000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code AJ34S
Engine displacement 4196 cm3
256.06 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 90.3 mm
3.56 in.
Compression ratio 9.1:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Supercharger, Intercooler
Valvetrain DOHC
Engine oil capacity 7 l
7.4 US qt | 6.16 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10 l
10.57 US qt | 8.8 UK qt

Space, Volume and weights
Kerb Weight 1695 kg
3736.84 lbs.
Max. weight 2080 kg
4585.62 lbs.
Max load 385 kg
848.78 lbs.
Trunk (boot) space – minimum 300 l
10.59 cu. ft.
Fuel tank capacity 71.1 l
18.78 US gal | 15.64 UK gal
Dimensions
Length 4791 mm
188.62 in.
Width with mirrors folded 1892 mm
74.49 in.
Width including mirrors 2070 mm
81.5 in.
Height 1322 mm
52.05 in.
Wheelbase 2752 mm
108.35 in.
Ride height (ground clearance) 120 mm
4.72 in.
Minimum turning circle (turning diameter) 10.97 m
35.99 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Double wishbone, Transverse stabilizer
Rear suspension Double wishbone, Transverse stabilizer
Front brakes Ventilated discs, 400 mm
Rear brakes Ventilated discs, 350 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size Front wheel tires: 245/40 R19; 255/35 R20
Rear wheel tires: 275/35 R19; 285/30 R20
Wheel rims size Front wheel rims: 8.5J x 19; 9J x 20
Rear wheel rims: 9.5J x 19; 9.5J x 20
