Specifications: Jeep Avenger 1.2 4xe (136 Hp) Hybrid eAWD e-DCT 2024, 2025

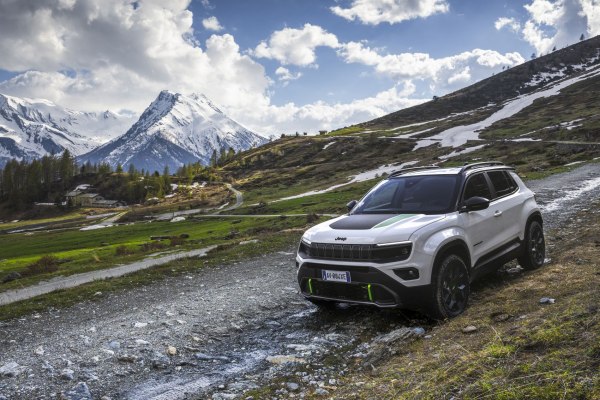

2023 Jeep Avenger - Photo 1

Jeep Avenger 1.2 4xe (136 Hp) Hybrid eAWD e-DCT – Full specifications
General information
Brand Jeep
Model Avenger
Generation Avenger
Modification (Engine) 1.2 4xe (136 Hp) Hybrid eAWD e-DCT
Start of production March, 2024 year
End of production April, 2025 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type SUV
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 5.4 l/100 km
43.56 US mpg
52.31 UK mpg
18.52 km/l
CO2 emissions (WLTP) 124 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.5 sec
Acceleration 0 – 62 mph 9.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9 sec
Maximum speed 194 km/h
120.55 mph
Emission standard Euro 6e
Weight-to-power ratio 10.3 kg/Hp, 97.1 Hp/tonne
Weight-to-torque ratio 6.1 kg/Nm, 164.3 Nm/tonne
Electric cars and hybrids specs
Battery voltage 48 V
Battery technology Lithium-ion (Li-Ion)
Electric motor 1
Electric motor power 29 Hp
Electric motor location Integrated into the transmission
Electric motor 2
Electric motor power 29 Hp
Electric motor location Rear axle, Transverse
Internal combustion engine specs
Power 136 Hp
Power per litre 113.4 Hp/l
Torque 230 Nm @ 1750 rpm.
169.64 lb.-ft. @ 1750 rpm.
Engine layout Front, Transverse
Engine displacement 1199 cm3
73.17 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 75 mm
2.95 in.
Piston Stroke 90.5 mm
3.56 in.
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 3.5 l
3.7 US qt | 3.08 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1400 kg
3086.47 lbs.
Max. weight 1976 kg
4356.33 lbs.
Max load 576 kg
1269.86 lbs.
Trunk (boot) space – minimum 325 l
11.48 cu. ft.
Trunk (boot) space – maximum 1218 l
43.01 cu. ft.
Fuel tank capacity 44 l
11.62 US gal | 9.68 UK gal
Permitted trailer load with brakes (12%) 920 kg
2028.25 lbs.
Permitted trailer load without brakes 620 kg
1366.87 lbs.
Permitted towbar download 48 kg
105.82 lbs.
Dimensions
Length 4088 mm
160.94 in.
Width 1776 mm
69.92 in.
Width with mirrors folded 1808 mm
71.18 in.
Width including mirrors 1981 mm
77.99 in.
Height 1541 mm
60.67 in.
Wheelbase 2563 mm
100.91 in.
Ride height (ground clearance) 210 mm
8.27 in.
Minimum turning circle (turning diameter) 10.5 m
34.45 ft.
Approach angle 22°
Departure angle 35°
Ramp-over (brakeover) angle 21°
Wading depth 400 mm
15.75 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture An Internal combustion engine (ICE) drives the front wheels, one electric motor drives the front wheels, one electric motor drives the rear wheels. There is an ability for running in full electric or mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, automatic transmission e-DCT
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 306×26 mm
Rear brakes Disc, 268×12 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/60 R17; 215/55 R18
Wheel rims size 17; 18
