Specifications: Jeep Cherokee III (KJ) 2.5 CRD (143 Hp) 2002, 2003, 2004, 2005, 2006, 2007, 2008

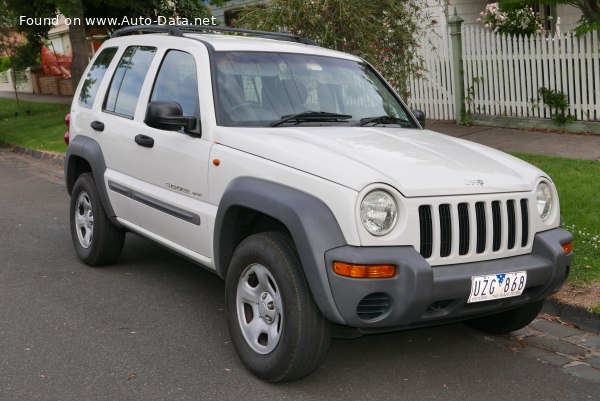

2002 Jeep Cherokee III (KJ) - Photo 1

Jeep Cherokee III (KJ) 2.5 CRD (143 Hp) – Full specifications
General information
Brand Jeep
Model Cherokee
Generation Cherokee III (KJ)
Modification (Engine) 2.5 CRD (143 Hp)
Start of production 2002 year
End of production 2008 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 11.7 l/100 km
20.1 US mpg
24.14 UK mpg
8.55 km/l
Fuel consumption (economy) – extra urban 7.5 l/100 km
31.36 US mpg
37.66 UK mpg
13.33 km/l
Fuel consumption (economy) – combined 9 l/100 km
26.13 US mpg
31.39 UK mpg
11.11 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 13.5 sec
Acceleration 0 – 62 mph 13.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.8 sec
Maximum speed 170 km/h
105.63 mph
Weight-to-power ratio 12.5 kg/Hp, 79.9 Hp/tonne
Weight-to-torque ratio 5.2 kg/Nm, 191.6 Nm/tonne
Engine specs
Power 143 Hp @ 4000 rpm.
Power per litre 57.2 Hp/l
Torque 343 Nm @ 2000 rpm.
252.98 lb.-ft. @ 2000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code R425
Engine displacement 2499 cm3
152.5 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 92 mm
3.62 in.
Piston Stroke 94 mm
3.7 in.
Compression ratio 17.5:1
Number of valves per cylinder 2
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain OHC
Engine oil capacity 6.5 l
6.87 US qt | 5.72 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 12.5 l
13.21 US qt | 11 UK qt

Space, Volume and weights
Kerb Weight 1790 kg
3946.27 lbs.
Max. weight 2400 kg
5291.09 lbs.
Max load 610 kg
1344.82 lbs.
Trunk (boot) space – minimum 820 l
28.96 cu. ft.
Trunk (boot) space – maximum 1950 l
68.86 cu. ft.
Fuel tank capacity 76 l
20.08 US gal | 16.72 UK gal
Dimensions
Length 4430 mm
174.41 in.
Width 1820 mm
71.65 in.
Height 1865 mm
73.43 in.
Wheelbase 2650 mm
104.33 in.
Front track 1525 mm
60.04 in.
Rear (Back) track 1515 mm
59.65 in.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Double wishbone
Rear suspension Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 235/70 R16
