Specifications: Jeep Compass I (MK, facelift 2011) 2.2 CRD (136 Hp) 2011, 2012, 2013, 2014, 2015

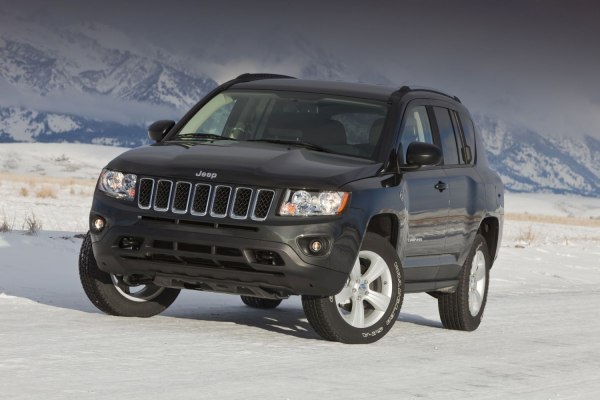

2011 Jeep Compass I (MK, facelift 2011) - Photo 1

Jeep Compass I (MK, facelift 2011) 2.2 CRD (136 Hp) – Full specifications
General information
Brand Jeep
Model Compass
Generation Compass I (MK, facelift 2011)
Modification (Engine) 2.2 CRD (136 Hp)
Start of production 2011 year
End of production 2015 year
Powertrain Architecture Internal Combustion engine
Body type SUV, Crossover
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban (NEDC) 7.4 l/100 km
31.79 US mpg
38.17 UK mpg
13.51 km/l
Fuel consumption (economy) – extra urban (NEDC) 5.4 l/100 km
43.56 US mpg
52.31 UK mpg
18.52 km/l
Fuel consumption (economy) – combined (NEDC) 6.1 l/100 km
38.56 US mpg
46.31 UK mpg
16.39 km/l
CO2 emissions (NEDC) 161 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 10.9 sec
Acceleration 0 – 62 mph 10.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.4 sec
Maximum speed 180 km/h
111.85 mph
Emission standard Euro 5
Weight-to-power ratio 11.5 kg/Hp, 87.2 Hp/tonne
Weight-to-torque ratio 4.9 kg/Nm, 205.3 Nm/tonne
Engine specs
Power 136 Hp @ 3600 rpm.
Power per litre 63.5 Hp/l
Torque 320 Nm @ 1400 rpm.
236.02 lb.-ft. @ 1400 rpm.
Engine layout Front, Transverse
Engine Model/Code ENE
Engine displacement 2143 cm3
130.77 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 99 mm
3.9 in.
Compression ratio 16.2:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 7.5 l
7.93 US qt | 6.6 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.5 l
10.04 US qt | 8.36 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1559-1602 kg
3437.01 – 3531.81 lbs.
Max. weight 2054 kg
4528.29 lbs.
Max load 452-495 kg
996.49 – 1091.29 lbs.
Trunk (boot) space – minimum 458 l
16.17 cu. ft.
Trunk (boot) space – maximum 1269 l
44.81 cu. ft.
Fuel tank capacity 51 l
13.47 US gal | 11.22 UK gal
Max. roof load 68 kg
149.91 lbs.
Permitted trailer load with brakes (12%) 1200 kg
2645.55 lbs.
Permitted trailer load without brakes 450 kg
992.08 lbs.
Dimensions
Length 4448 mm
175.12 in.
Width 1812 mm
71.34 in.
Height 1718 mm
67.64 in.
Wheelbase 2635 mm
103.74 in.
Front track 1520 mm
59.84 in.
Rear (Back) track 1520 mm
59.84 in.
Front overhang 916 mm
36.06 in.
Rear overhang 897 mm
35.31 in.
Ride height (ground clearance) 205 mm
8.07 in.
Minimum turning circle (turning diameter) 11.3 m
37.07 ft.
Approach angle 20°
Departure angle 32°
Ramp-over (brakeover) angle 20°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 215/60 R17
Wheel rims size 6.5J x 15
