Specifications: Jeep Compass II (MP, facelift 2021) 2.0 Turbo (200 Hp) 4×4 Automatic 2022, 2023, 2024, 2025

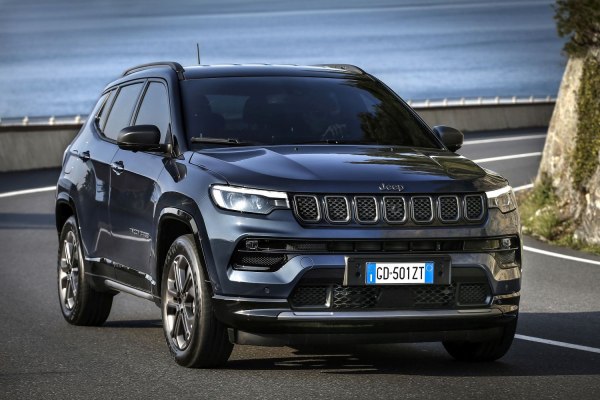

2021 Jeep Compass II (MP, facelift 2021) - Photo 1

Jeep Compass II (MP, facelift 2021) 2.0 Turbo (200 Hp) 4×4 Automatic – Full specifications
General information
Brand Jeep
Model Compass
Generation Compass II (MP, facelift 2021)
Modification (Engine) 2.0 Turbo (200 Hp) 4×4 Automatic
Start of production November, 2022 year
Powertrain Architecture Internal Combustion engine
Body type SUV, Crossover
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (EPA) 9.8 l/100 km
24 US mpg
28.82 UK mpg
10.2 km/l
Fuel consumption (economy) – extra urban (EPA) 7.4 l/100 km
31.79 US mpg
38.17 UK mpg
13.51 km/l
Fuel consumption (economy) – combined (EPA) 8.7 l/100 km
27.04 US mpg
32.47 UK mpg
11.49 km/l
CO2 emissions (EPA) 205 g/km
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 8.2 kg/Hp, 121.8 Hp/tonne
Weight-to-torque ratio 5.5 kg/Nm, 182.7 Nm/tonne
Engine specs
Power 200 Hp @ 5000 rpm.
Power per litre 100.3 Hp/l
Torque 300 Nm @ 1750-4250 rpm.
221.27 lb.-ft. @ 1750-4250 rpm.
Maximum engine speed 5800 rpm.
Engine layout Front, Transverse
Engine Model/Code EC1
Engine displacement 1995 cm3
121.74 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Twin-scroll turbo, Intercooler
Valvetrain DOHC, VVT
Engine oil capacity 4.7 l
4.97 US qt | 4.14 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.6 l
9.09 US qt | 7.57 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1642 kg
3619.99 lbs.
Max. weight 2177 kg
4799.46 lbs.
Max load 535 kg
1179.47 lbs.
Trunk (boot) space – minimum 438 l
15.47 cu. ft.
Trunk (boot) space – maximum 1387 l
48.98 cu. ft.
Fuel tank capacity 51 l
13.47 US gal | 11.22 UK gal
Permitted trailer load with brakes (12%) 907 kg
1999.59 lbs.
Permitted trailer load without brakes 453 kg
998.69 lbs.
Permitted towbar download 90 kg
198.42 lbs.
Dimensions
Length 4404 mm
173.39 in.
Width with mirrors folded 1874 mm
73.78 in.
Width including mirrors 2033 mm
80.04 in.
Height 1647 mm
64.84 in.
Wheelbase 2636 mm
103.78 in.
Front track 1542 mm
60.71 in.
Rear (Back) track 1532 mm
60.31 in.
Ride height (ground clearance) 207 mm
8.15 in.
Minimum turning circle (turning diameter) 11.07 m
36.32 ft.
Approach angle 16.1°
Departure angle 31.4°
Ramp-over (brakeover) angle 22.5°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent coil spring, Transverse stabilizer
Front brakes Ventilated discs, 305×28 mm
Rear brakes Disc, 278×12 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/60 R17; 225/55 R18; 235/45 R19
Wheel rims size 7J x 17; 7J x 18; 7.5J x 19
