Specifications: Jeep Grand Cherokee III (WK) 4.7i V8 (238 Hp) Automatic 2005, 2006, 2007

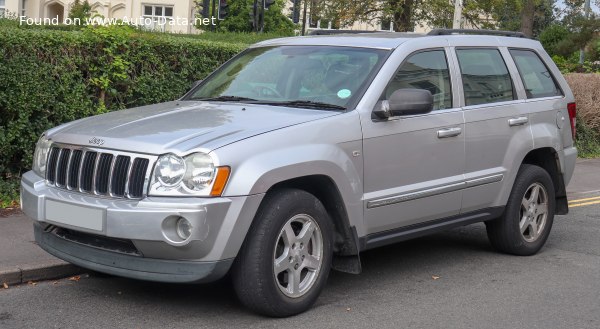

2005 Jeep Grand Cherokee III (WK) - Photo 1

Jeep Grand Cherokee III (WK) 4.7i V8 (238 Hp) Automatic – Full specifications
General information
Brand Jeep
Model Grand Cherokee
Generation Grand Cherokee III (WK)
Modification (Engine) 4.7i V8 (238 Hp) Automatic
Start of production 2005 year
End of production 2007 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 15.7 l/100 km
14.98 US mpg
17.99 UK mpg
6.37 km/l
Fuel consumption (economy) – extra urban 11.8 l/100 km
19.93 US mpg
23.94 UK mpg
8.47 km/l
Fuel consumption (economy) – combined 13.8 l/100 km
17.04 US mpg
20.47 UK mpg
7.25 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 8.3 kg/Hp, 120.1 Hp/tonne
Weight-to-torque ratio 4.8 kg/Nm, 209 Nm/tonne
Engine specs
Power 238 Hp @ 4500 rpm.
Power per litre 50.6 Hp/l
Torque 414 Nm @ 3600 rpm.
305.35 lb.-ft. @ 3600 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EVA
Engine displacement 4701 cm3
286.87 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 93 mm
3.66 in.
Piston Stroke 86.5 mm
3.41 in.
Compression ratio 9:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 5.7 l
6.02 US qt | 5.02 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 11.8 l
12.47 US qt | 10.38 UK qt

Space, Volume and weights
Kerb Weight 1981 kg
4367.36 lbs.
Max. weight 2726 kg
6009.8 lbs.
Max load 745 kg
1642.44 lbs.
Trunk (boot) space – minimum 977 l
34.5 cu. ft.
Trunk (boot) space – maximum 1909 l
67.42 cu. ft.
Fuel tank capacity 78 l
20.61 US gal | 17.16 UK gal
Dimensions
Length 4740 mm
186.61 in.
Width 1862 mm
73.31 in.
Height 1720 mm
67.72 in.
Wheelbase 2781 mm
109.49 in.
Front track 1575 mm
62.01 in.
Rear (Back) track 1575 mm
62.01 in.
Ride height (ground clearance) 204 mm
8.03 in.
Drag coefficient (Cd) 0.41
Minimum turning circle (turning diameter) 11.3 m
37.07 ft.
Approach angle 34.1°
Departure angle 27.1°
Ramp-over (brakeover) angle 20.6°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, automatic transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 235/65 R17
Wheel rims size 17
