Specifications: Jeep Grand Cherokee V (WL) 5.7 V8 (364 Hp) 4×4 Torqueflite 2021, 2022, 2023

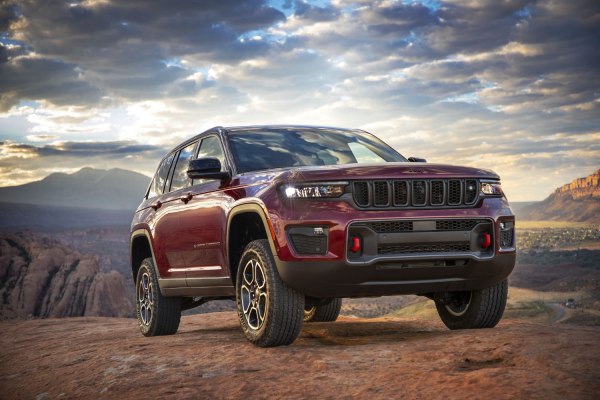

2022 Jeep Grand Cherokee V (WL) - Photo 1

Jeep Grand Cherokee V (WL) 5.7 V8 (364 Hp) 4×4 Torqueflite – Full specifications
General information
Brand Jeep
Model Grand Cherokee
Generation Grand Cherokee V (WL)
Modification (Engine) 5.7 V8 (364 Hp) 4×4 Torqueflite
Start of production September, 2021 year
End of production 2023 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 16.8 l/100 km
14 US mpg
16.81 UK mpg
5.95 km/l
Fuel consumption (economy) – extra urban 10.7 l/100 km
21.98 US mpg
26.4 UK mpg
9.35 km/l
Fuel consumption (economy) – combined 13.8 l/100 km
17.04 US mpg
20.47 UK mpg
7.25 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 6.3 kg/Hp, 159.9 Hp/tonne
Weight-to-torque ratio 4.3 kg/Nm, 232.4 Nm/tonne
Engine specs
Power 364 Hp @ 5150 rpm.
Power per litre 64.4 Hp/l
Torque 529 Nm @ 4250 rpm.
390.17 lb.-ft. @ 4250 rpm.
Maximum engine speed 5800 rpm.
Engine layout Front, Longitudinal
Engine displacement 5654 cm3
345.03 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 99.5 mm
3.92 in.
Piston Stroke 90.9 mm
3.58 in.
Compression ratio 10.5:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Valvetrain VVT
Engine oil capacity 6.6 l
6.97 US qt | 5.81 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 14.2 l
15 US qt | 12.49 UK qt
Engine systems Start & Stop System
Cylinder deactivation system

Space, Volume and weights
Kerb Weight 2276-2288 kg
5017.72 – 5044.18 lbs.
Max. weight 2809 kg
6192.78 lbs.
Max load 521-533 kg
1148.61 – 1175.06 lbs.
Trunk (boot) space – minimum 1068 l
37.72 cu. ft.
Trunk (boot) space – maximum 2005 l
70.81 cu. ft.
Fuel tank capacity 87 l
22.98 US gal | 19.14 UK gal
Permitted trailer load with brakes (12%) 3266 kg
7200.3 lbs.
Dimensions
Length 4915 mm
193.5 in.
Width 1969 mm
77.52 in.
Width with mirrors folded 1969 mm
77.52 in.
Width including mirrors 2149 mm
84.61 in.
Height 1798-1801 mm
70.79 – 70.91 in.
Wheelbase 2964 mm
116.69 in.
Front track 1661 mm
65.39 in.
Rear (Back) track 1661 mm
65.39 in.
Ride height (ground clearance) 214-287 mm
8.43 – 11.3 in.
Drag coefficient (Cd) 0.357
Minimum turning circle (turning diameter) 11.6 m
38.06 ft.
Approach angle 20.5-35.7°
Departure angle 26.6-30.2°
Ramp-over (brakeover) angle 24-24.4°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission Torqueflite
Front suspension Independent multi-link suspension
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 354×28 mm
Rear brakes Ventilated discs, 350×22 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 265/60 R18; 265/50 R20; 275/45 R21
Wheel rims size 8J x 18; 8.5J x 20; 9J x 21
